AESCTRDRBGX4_s.h File Reference

#include <stdint.h>
#include <ti/drivers/crypto/CryptoCC26X4_s.h>
#include <ti/drivers/AESCTRDRBG.h>
#include <third_party/tfm/interface/include/psa/error.h>
#include <third_party/tfm/interface/include/psa/service.h>

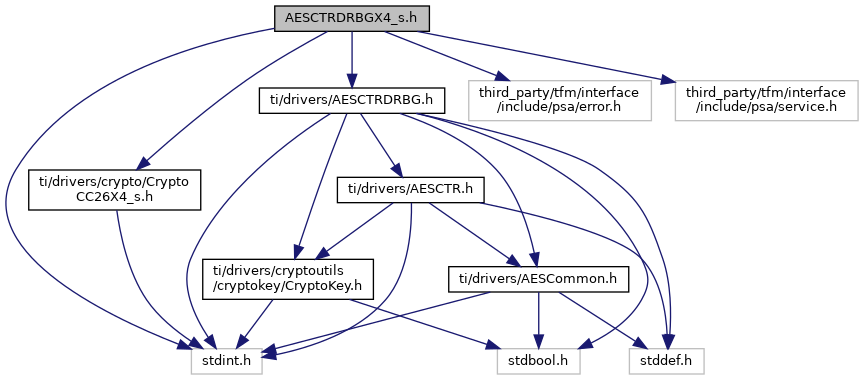

Include dependency graph for AESCTRDRBGX4_s.h:

Go to the source code of this file.

Data Structures
struct	AESCTRDRBG_s_ConstructMsg
struct	AESCTRDRBG_s_OpenMsg
struct	AESCTRDRBG_s_CloseMsg
struct	AESCTRDRBG_s_ReseedMsg
struct	AESCTRDRBG_s_GetRandomBytesMsg
struct	AESCTRDRBG_s_GenerateKeyMsg

Macros
#define	AESCTRDRBG_S_MSG_TYPE_CONSTRUCT   (CRYPTO_S_MSG_TYPE_INDEX_AESCTRDRBG | ((int32_t)1 << (CRYPTO_S_MSG_TYPE_SHIFT + 0U)))
#define	AESCTRDRBG_S_MSG_TYPE_OPEN   (CRYPTO_S_MSG_TYPE_INDEX_AESCTRDRBG | ((int32_t)1 << (CRYPTO_S_MSG_TYPE_SHIFT + 1U)))
#define	AESCTRDRBG_S_MSG_TYPE_CLOSE   (CRYPTO_S_MSG_TYPE_INDEX_AESCTRDRBG | ((int32_t)1 << (CRYPTO_S_MSG_TYPE_SHIFT + 2U)))
#define	AESCTRDRBG_S_MSG_TYPE_RESEED   (CRYPTO_S_MSG_TYPE_INDEX_AESCTRDRBG | ((int32_t)1 << (CRYPTO_S_MSG_TYPE_SHIFT + 3U)))
#define	AESCTRDRBG_S_MSG_TYPE_GET_RANDOM_BYTES   (CRYPTO_S_MSG_TYPE_INDEX_AESCTRDRBG | ((int32_t)1 << (CRYPTO_S_MSG_TYPE_SHIFT + 4U)))
#define	AESCTRDRBG_S_MSG_TYPE_GENERATE_KEY   (CRYPTO_S_MSG_TYPE_INDEX_AESCTRDRBG | ((int32_t)1 << (CRYPTO_S_MSG_TYPE_SHIFT + 5U)))
#define	CONFIG_AESCTRDRBG_S_CONFIG_POOL_SIZE   1

Functions
psa_status_t	AESCTRDRBG_s_handlePsaMsg (psa_msg_t *msg)
	Handles PSA messages for AES CTR DRBG secure driver. More...
void	AESCTRDRBG_s_init (void)
	Initializes the AES CTR DRBG secure driver. More...

Macro Definition Documentation

AESCTRDRBG_S_MSG_TYPE_CONSTRUCT

#define AESCTRDRBG_S_MSG_TYPE_CONSTRUCT   (CRYPTO_S_MSG_TYPE_INDEX_AESCTRDRBG | ((int32_t)1 << (CRYPTO_S_MSG_TYPE_SHIFT + 0U)))

AESCTRDRBG_S_MSG_TYPE_OPEN

#define AESCTRDRBG_S_MSG_TYPE_OPEN   (CRYPTO_S_MSG_TYPE_INDEX_AESCTRDRBG | ((int32_t)1 << (CRYPTO_S_MSG_TYPE_SHIFT + 1U)))

AESCTRDRBG_S_MSG_TYPE_CLOSE

#define AESCTRDRBG_S_MSG_TYPE_CLOSE   (CRYPTO_S_MSG_TYPE_INDEX_AESCTRDRBG | ((int32_t)1 << (CRYPTO_S_MSG_TYPE_SHIFT + 2U)))

AESCTRDRBG_S_MSG_TYPE_RESEED

#define AESCTRDRBG_S_MSG_TYPE_RESEED   (CRYPTO_S_MSG_TYPE_INDEX_AESCTRDRBG | ((int32_t)1 << (CRYPTO_S_MSG_TYPE_SHIFT + 3U)))

AESCTRDRBG_S_MSG_TYPE_GET_RANDOM_BYTES

#define AESCTRDRBG_S_MSG_TYPE_GET_RANDOM_BYTES   (CRYPTO_S_MSG_TYPE_INDEX_AESCTRDRBG | ((int32_t)1 << (CRYPTO_S_MSG_TYPE_SHIFT + 4U)))

AESCTRDRBG_S_MSG_TYPE_GENERATE_KEY

#define AESCTRDRBG_S_MSG_TYPE_GENERATE_KEY   (CRYPTO_S_MSG_TYPE_INDEX_AESCTRDRBG | ((int32_t)1 << (CRYPTO_S_MSG_TYPE_SHIFT + 5U)))

CONFIG_AESCTRDRBG_S_CONFIG_POOL_SIZE

#define CONFIG_AESCTRDRBG_S_CONFIG_POOL_SIZE   1

Function Documentation

AESCTRDRBG_s_handlePsaMsg()

psa_status_t AESCTRDRBG_s_handlePsaMsg

(

psa_msg_t *

msg

)

Handles PSA messages for AES CTR DRBG secure driver.

Note

This function should be called by secure partition thread only.

Parameters

[in]

msg

pointer to PSA message

Return values

PSA_SUCCESS	if successful.
PSA_ERROR_PROGRAMMER_ERROR	if any args point to secure addresses.

AESCTRDRBG_s_init()

void AESCTRDRBG_s_init

(

void

)

Initializes the AES CTR DRBG secure driver.

Note

This function should be called by secure partition thread only.
