AESCCMCC26X4 Object. More...

#include <AESCCMCC26X4.h>

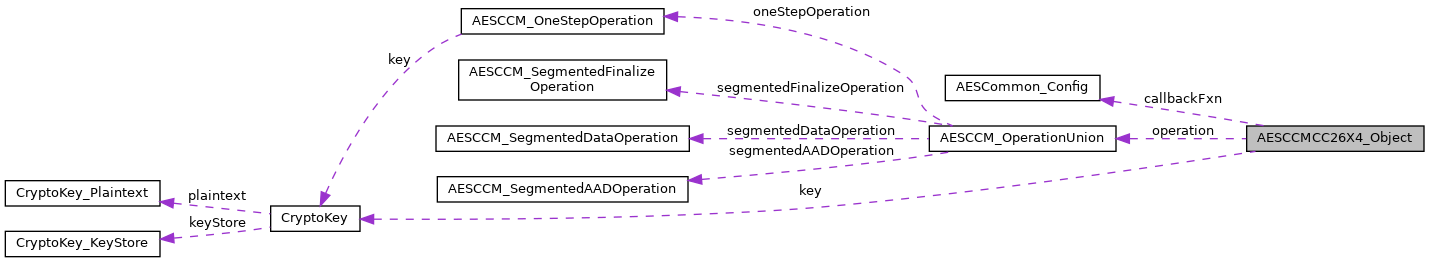

Collaboration diagram for AESCCMCC26X4_Object:

[legend]

Data Fields
uint32_t	intermediateIV [AES_IV_LENGTH_BYTES/4]

uint32_t	intermediateTag [AES_TAG_LENGTH_BYTES/4]

uint32_t	blockCounter

uint32_t	alignmentInfo

uint32_t	semaphoreTimeout

AESCCM_CallbackFxn	callbackFxn

AESCCM_OperationUnion *	operation

size_t	expectedAADLength

size_t	expectedPlaintextLength

size_t	actualAADLength

size_t	actualPlaintextLength

CryptoKey	key

volatile int_fast16_t	returnStatus

AESCCM_ReturnBehavior	returnBehavior

AESCCM_OperationType	operationType

uint8_t	macLength

uint8_t	nonceLength

bool	continueAADOperation

bool	continueDataOperation

bool	isOpen

volatile bool	operationInProgress

volatile bool	hwBusy

volatile bool	cryptoResourceLocked

Detailed Description

AESCCMCC26X4 Object.

The application must not access any member variables of this structure!

Field Documentation

§ intermediateIV

uint32_t AESCCMCC26X4_Object::intermediateIV[AES_IV_LENGTH_BYTES/4]

§ intermediateTag

uint32_t AESCCMCC26X4_Object::intermediateTag[AES_TAG_LENGTH_BYTES/4]

§ blockCounter

uint32_t AESCCMCC26X4_Object::blockCounter

§ alignmentInfo

uint32_t AESCCMCC26X4_Object::alignmentInfo

§ semaphoreTimeout

uint32_t AESCCMCC26X4_Object::semaphoreTimeout

§ callbackFxn

AESCCM_CallbackFxn AESCCMCC26X4_Object::callbackFxn

§ operation

AESCCM_OperationUnion* AESCCMCC26X4_Object::operation

§ expectedAADLength

size_t AESCCMCC26X4_Object::expectedAADLength

§ expectedPlaintextLength

size_t AESCCMCC26X4_Object::expectedPlaintextLength

§ actualAADLength

size_t AESCCMCC26X4_Object::actualAADLength

§ actualPlaintextLength

size_t AESCCMCC26X4_Object::actualPlaintextLength

§ key

CryptoKey AESCCMCC26X4_Object::key

§ returnStatus

volatile int_fast16_t AESCCMCC26X4_Object::returnStatus

§ returnBehavior

AESCCM_ReturnBehavior AESCCMCC26X4_Object::returnBehavior

§ operationType

AESCCM_OperationType AESCCMCC26X4_Object::operationType

§ macLength

uint8_t AESCCMCC26X4_Object::macLength

§ nonceLength

uint8_t AESCCMCC26X4_Object::nonceLength

§ continueAADOperation

bool AESCCMCC26X4_Object::continueAADOperation

§ continueDataOperation

bool AESCCMCC26X4_Object::continueDataOperation

§ isOpen

bool AESCCMCC26X4_Object::isOpen

§ operationInProgress

volatile bool AESCCMCC26X4_Object::operationInProgress

§ hwBusy

volatile bool AESCCMCC26X4_Object::hwBusy

§ cryptoResourceLocked

volatile bool AESCCMCC26X4_Object::cryptoResourceLocked

The documentation for this struct was generated from the following file:

AESCCMCC26X4.h
