AESCMACCC26XX_Object Struct Reference

AESCMACCC26XX Object. More...

#include <AESCMACCC26XX.h>

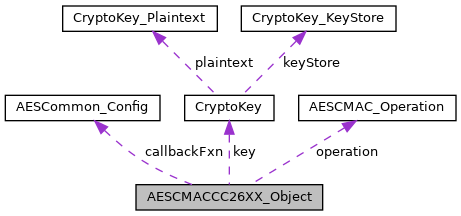

Collaboration diagram for AESCMACCC26XX_Object:

Data Fields
uint32_t	intermediateTag [AES_TAG_LENGTH_BYTES/4]
uint32_t	buffer [AES_BLOCK_SIZE/4]
uint32_t	semaphoreTimeout
AESCMAC_CallbackFxn	callbackFxn
AESCMAC_Operation *	operation
CryptoKey	key
volatile int_fast16_t	returnStatus
AESCMAC_ReturnBehavior	returnBehavior
AESCMAC_OperationType	operationType
AESCMAC_OperationalMode	operationalMode
bool	isOpen
bool	threadSafe
volatile bool	cryptoResourceLocked
volatile bool	hwBusy
volatile bool	operationInProgress

Detailed Description

AESCMACCC26XX Object.

The application must not access any member variables of this structure!

Field Documentation

intermediateTag

uint32_t AESCMACCC26XX_Object::intermediateTag[AES_TAG_LENGTH_BYTES/4]

buffer

uint32_t AESCMACCC26XX_Object::buffer[AES_BLOCK_SIZE/4]

semaphoreTimeout

uint32_t AESCMACCC26XX_Object::semaphoreTimeout

callbackFxn

AESCMAC_CallbackFxn AESCMACCC26XX_Object::callbackFxn

operation

AESCMAC_Operation* AESCMACCC26XX_Object::operation

key

CryptoKey AESCMACCC26XX_Object::key

returnStatus

volatile int_fast16_t AESCMACCC26XX_Object::returnStatus

returnBehavior

AESCMAC_ReturnBehavior AESCMACCC26XX_Object::returnBehavior

operationType

AESCMAC_OperationType AESCMACCC26XX_Object::operationType

operationalMode

AESCMAC_OperationalMode AESCMACCC26XX_Object::operationalMode

isOpen

bool AESCMACCC26XX_Object::isOpen

threadSafe

bool AESCMACCC26XX_Object::threadSafe

cryptoResourceLocked

volatile bool AESCMACCC26XX_Object::cryptoResourceLocked

hwBusy

volatile bool AESCMACCC26XX_Object::hwBusy

operationInProgress

volatile bool AESCMACCC26XX_Object::operationInProgress

---

The documentation for this struct was generated from the following file:

• AESCMACCC26XX.h
