Device Identity and Keys

In order to maintain integrity, authenticity, and confidentiality, embedded processors can be programmed with symmetric or asymmetric key pairs.

Keys can be used in signatures and certificates to authenticate the boot code stored in external memory to check that it has not been tampered with or hacked.

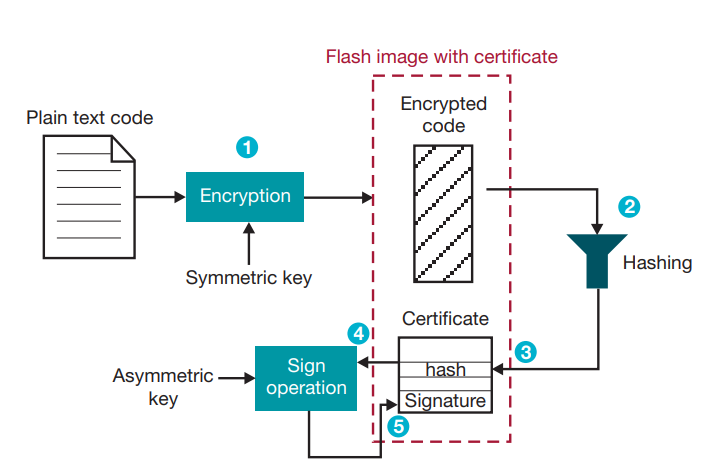

Code signing and Encryption

In TI’s ARM based processors, the authentication process in the secure boot flow is achieved through asymmetric cryptography. The user comes up with a pair of public and private keys, the public key is fused into the device, and the private key is programmed into the x509 certificate. The Secure Boot section has more details on the secure boot flow.

For hands-on steps for using the private and public key set for generating the x509 certificate and keywriting on the device, refer to Step 2: Generate the x509 Certificate.

The table below contains definitions for the keys used for authentication and encryption on a TI ARM based processor.

Key Description

Key/ID	Definition	Description
SMPK	Secondary Manufacturer Public Key	SMPK is 4096-bit cust RSA signing key
BMPK	Backup Manufacturer Public Key	BMPK is 4096-bit cust RSA signing key
SMEK	Secondary Manufacturer Encryption Key	256-bit Customer Encryption for encrypted boot
BMEK	Backup Manufacturer Encryption Key	256-bit Customer Encryption for encrypted boot
UID	Unique Identity	Each device has a unique ID associated with it.
