TI Processor Security#
This section covers the security features on TI’s ARM based processors.
Security Architecture#

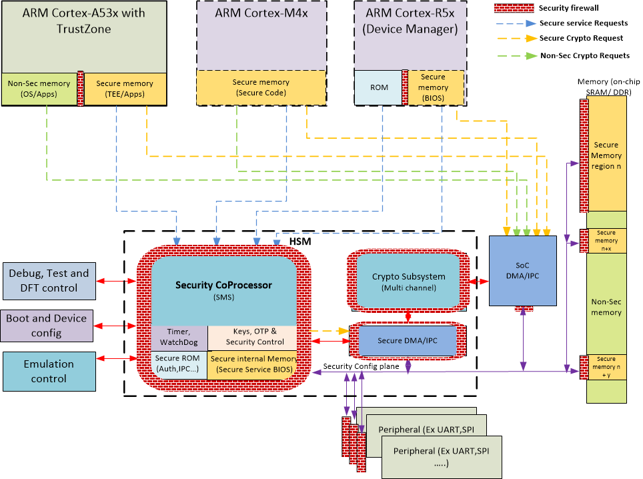

TI enables security on ARM based processors through both hardware and software. The security specific hardware components on these devices are important to ensure a secure foundation, protect critical assets like keys and config data, and accelerate security-related processes. The security architecture shown below highlights these components.
Security Architecture#
TI’s ARM based processors have a dedicated security module in hardware that consists of the following components.
Component |
Functionality |
|---|---|
SMS |
Security CoProcessor that manages and controls overall security on the device including secure boot and debug security |
Crypto subsystem |
Accelerator for generating and certifying keys |
Secure DMA |
Dedicated DMA for crypto subsystem |
Device Security Configurations#

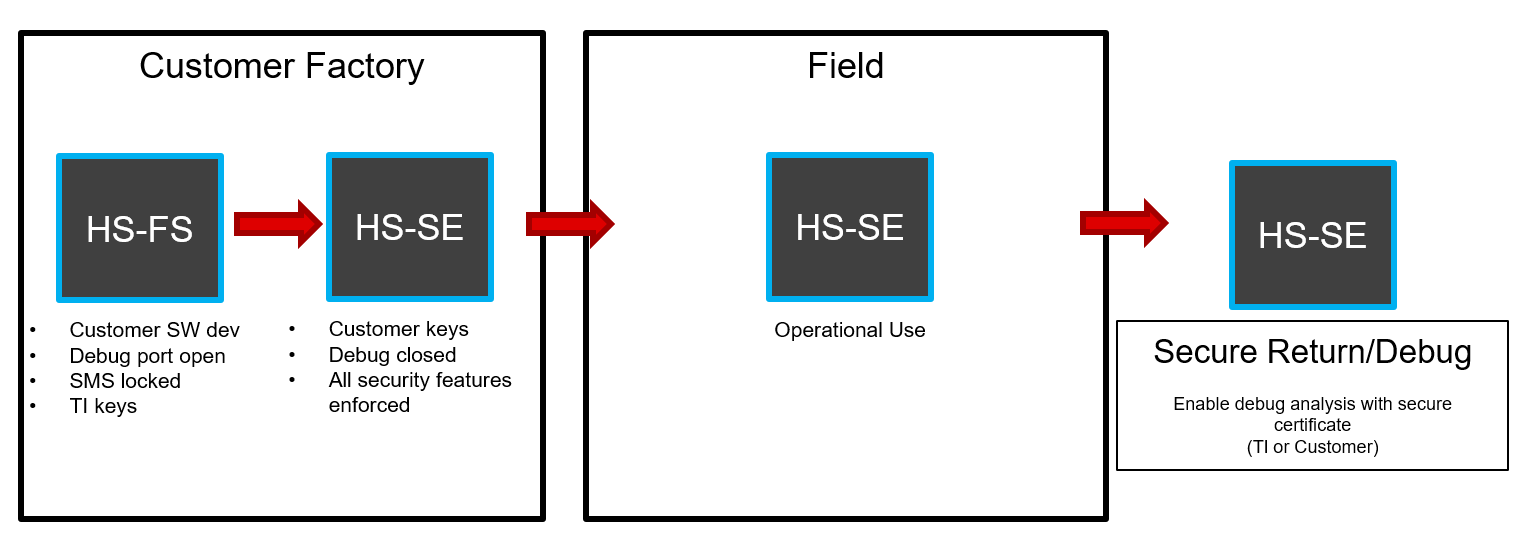

TI’s ARM based processors have two security states: HS-FS and HS-SE. The image below shows the distinction between the two.
Secure Device Lifecycle#
What is an HS-FS device?#
TI delivers ARM based processors to customers as High Secure Field Securable (HS-FS) devices. These devices come with the hardware components needed to enforce all security features, but these features are not enabled by default on an HS-FS device. An HS-FS device allows customers to run diagnostics code without creating signed images, it does not enforce secure boot, and the JTAG port is unlocked.
What is an HS-SE device?#
Upon generating a x509 certificate and programming keys into an HS-FS device, the processor gets converted to High Secure Security Enforced (HS-SE) device. An HS-SE device enforces secure boot, has a locked JTAG port, and engages firewalls between hardware modules. It is considered a fully secure device with all security features enabled.
