BLE Update Advertising Payload Command. More...

#include <rf_ble_cmd.h>

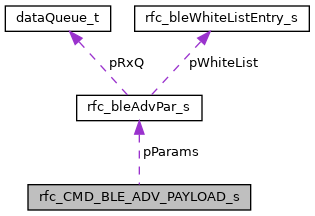

Collaboration diagram for rfc_CMD_BLE_ADV_PAYLOAD_s:

Data Fields
uint16_t	commandNo
	The command ID number 0x1001. More...

uint8_t	payloadType
	0: Advertising data 1: Scan response data More...

uint8_t	newLen
	Length of the new payload. More...

uint8_t *	pNewData
	Pointer to the buffer containing the new data. More...

rfc_bleAdvPar_t *	pParams
	Pointer to the parameter structure to update. More...

Detailed Description

BLE Update Advertising Payload Command.

Field Documentation

uint16_t rfc_CMD_BLE_ADV_PAYLOAD_s::commandNo

The command ID number 0x1001.

uint8_t rfc_CMD_BLE_ADV_PAYLOAD_s::payloadType

0: Advertising data
1: Scan response data

uint8_t rfc_CMD_BLE_ADV_PAYLOAD_s::newLen

Length of the new payload.

uint8_t * rfc_CMD_BLE_ADV_PAYLOAD_s::pNewData

Pointer to the buffer containing the new data.

rfc_bleAdvPar_t * rfc_CMD_BLE_ADV_PAYLOAD_s::pParams

Pointer to the parameter structure to update.

The documentation for this struct was generated from the following file:
