_apimac_macmlmeassociatereq Struct Reference

#include <api_mac.h>

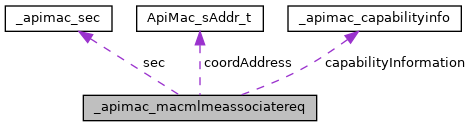

Collaboration diagram for _apimac_macmlmeassociatereq:

Data Fields
ApiMac_sec_t	sec
uint8_t	logicalChannel
uint8_t	channelPage
uint8_t	phyID
ApiMac_sAddr_t	coordAddress
uint16_t	coordPanId
ApiMac_capabilityInfo_t	capabilityInformation

Detailed Description

MLME associate request type

Field Documentation

sec

ApiMac_sec_t _apimac_macmlmeassociatereq::sec

The security parameters for this message

logicalChannel

uint8_t _apimac_macmlmeassociatereq::logicalChannel

The channel on which to attempt association

channelPage

uint8_t _apimac_macmlmeassociatereq::channelPage

The channel page on which to attempt association

phyID

uint8_t _apimac_macmlmeassociatereq::phyID

Identifier for the PHY descriptor

coordAddress

ApiMac_sAddr_t _apimac_macmlmeassociatereq::coordAddress

Address of the coordinator with which to associate

coordPanId

uint16_t _apimac_macmlmeassociatereq::coordPanId

The identifier of the PAN with which to associate

capabilityInformation

ApiMac_capabilityInfo_t _apimac_macmlmeassociatereq::capabilityInformation

The operational capabilities of this device

---

The documentation for this struct was generated from the following file:

• api_mac.h
