_apimac_secdevicedescriptor Struct Reference

#include <api_mac.h>

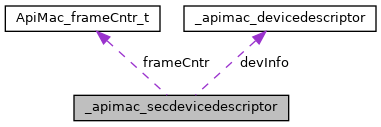

Collaboration diagram for _apimac_secdevicedescriptor:

Data Fields
ApiMac_deviceDescriptor_t	devInfo
ApiMac_frameCntr_t *	frameCntr
bool	exempt

Detailed Description

Security Device Descriptor

Field Documentation

devInfo

ApiMac_deviceDescriptor_t _apimac_secdevicedescriptor::devInfo

Device information

frameCntr

ApiMac_frameCntr_t* _apimac_secdevicedescriptor::frameCntr

The incoming frame counter of the device. This value is used to ensure sequential freshness of frames. API_MAX_NODE_KEY_ENTRIES needs to match the value in macCfg.

exempt

bool _apimac_secdevicedescriptor::exempt

Device may override the minimum security level settings.

---

The documentation for this struct was generated from the following file:

• api_mac.h
