ApiMac_mlmeBeaconNotifyInd_t Struct Reference

#include <api_mac.h>

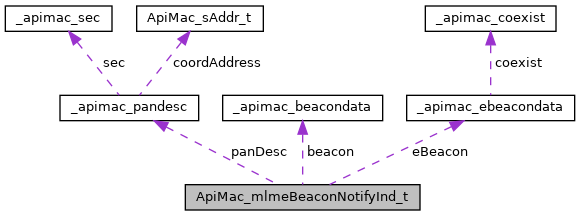

Collaboration diagram for ApiMac_mlmeBeaconNotifyInd_t:

Data Fields
ApiMac_beaconType_t	beaconType
uint8_t	bsn
ApiMac_panDesc_t	panDesc
union {
ApiMac_beaconData_t   beacon
ApiMac_eBeaconData_t   eBeacon
}	beaconData

Detailed Description

MAC_MLME_BEACON_NOTIFY_IND type

Field Documentation

beaconType

ApiMac_beaconType_t ApiMac_mlmeBeaconNotifyInd_t::beaconType

Indicates the beacon type: beacon or enhanced beacon

bsn

uint8_t ApiMac_mlmeBeaconNotifyInd_t::bsn

The beacon sequence number or enhanced beacon sequence number

panDesc

ApiMac_panDesc_t ApiMac_mlmeBeaconNotifyInd_t::panDesc

The PAN Descriptor for the received beacon

beacon

ApiMac_beaconData_t ApiMac_mlmeBeaconNotifyInd_t::beacon

beacon data

eBeacon

ApiMac_eBeaconData_t ApiMac_mlmeBeaconNotifyInd_t::eBeacon

enhanced beacon data

beaconData

union { ... } ApiMac_mlmeBeaconNotifyInd_t::beaconData

Beacon data union depending on beaconType, select beaconData or or eBeaconData.

---

The documentation for this struct was generated from the following file:

• api_mac.h
