AESCBCLPF3_Object Struct Reference

AESCBCLPF3 Object. More...

#include <AESCBCLPF3.h>

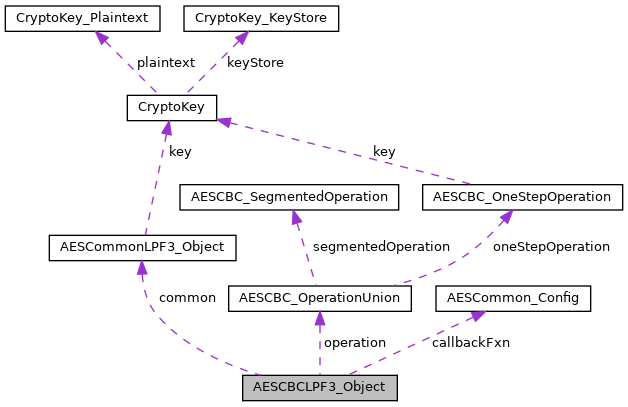

Collaboration diagram for AESCBCLPF3_Object:

Data Fields
AESCommonLPF3_Object	common
volatile uint32_t	iv [AES_IV_LENGTH_BYTES/4]
const uint8_t *	input
uint8_t *	output
AESCBC_CallbackFxn	callbackFxn
AESCBC_OperationUnion *	operation
AESCBC_OperationType	operationType
bool	threadSafe
size_t	inputLength
int_fast16_t	hsmStatus
	The staus of the HSM Boot up process if HSMLPF3_STATUS_SUCCESS, the HSM booted properly. if HSMLPF3_STATUS_ERROR, the HSM did not boot properly. More...
uint32_t	keyAssetID
KeyStore_PSA_KeyLocation	keyLocation
bool	segmentedOperationInProgress

Detailed Description

AESCBCLPF3 Object.

The application must not access any member variables of this structure!

Field Documentation

common

AESCommonLPF3_Object AESCBCLPF3_Object::common

iv

volatile uint32_t AESCBCLPF3_Object::iv[AES_IV_LENGTH_BYTES/4]

input

const uint8_t* AESCBCLPF3_Object::input

output

uint8_t* AESCBCLPF3_Object::output

callbackFxn

AESCBC_CallbackFxn AESCBCLPF3_Object::callbackFxn

operation

AESCBC_OperationUnion* AESCBCLPF3_Object::operation

operationType

AESCBC_OperationType AESCBCLPF3_Object::operationType

threadSafe

bool AESCBCLPF3_Object::threadSafe

inputLength

size_t AESCBCLPF3_Object::inputLength

hsmStatus

int_fast16_t AESCBCLPF3_Object::hsmStatus

The staus of the HSM Boot up process if HSMLPF3_STATUS_SUCCESS, the HSM booted properly. if HSMLPF3_STATUS_ERROR, the HSM did not boot properly.

keyAssetID

uint32_t AESCBCLPF3_Object::keyAssetID

keyLocation

KeyStore_PSA_KeyLocation AESCBCLPF3_Object::keyLocation

segmentedOperationInProgress

bool AESCBCLPF3_Object::segmentedOperationInProgress

---

The documentation for this struct was generated from the following file:

• AESCBCLPF3.h
