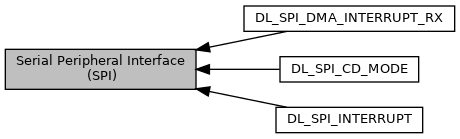

Collaboration diagram for Serial Peripheral Interface (SPI):

Modules
	DL_SPI_CD_MODE

	DL_SPI_INTERRUPT

	DL_SPI_DMA_INTERRUPT_RX

Data Structures
struct	DL_SPI_Config
	Configuration struct for DL_SPI_init. More...

struct	DL_SPI_ClockConfig
	Configuration struct for DL_SPI_setClockConfig. More...

struct	DL_SPI_backupConfig
	Configuration structure to backup SPI peripheral state before going to STOP/STANDBY mode. Not required after PG 1.0 silicon. Used by DL_SPI_saveConfiguration and DL_SPI_restoreConfiguration. More...

Macros
#define	DL_SPI_DMA_INTERRUPT_TX (SPI_DMA_TRIG_TX_IMASK_TX_SET)
	SPI interrupt for enabling SPI transmit as DMA trigger.

Enumerations
enum	DL_SPI_DMA_IIDX_RX { DL_SPI_DMA_IIDX_RX_TRIGGER = SPI_DMA_TRIG_RX_IIDX_STAT_RX_EVT, DL_SPI_DMA_IIDX_RX_TIMEOUT_TRIGGER = SPI_DMA_TRIG_RX_IIDX_STAT_RTOUT_EVT }

enum	DL_SPI_DMA_IIDX_TX { DL_SPI_DMA_IIDX_TX_TRIGGER = SPI_DMA_TRIG_TX_IIDX_STAT_TX_EVT }

enum	DL_SPI_PARITY { DL_SPI_PARITY_EVEN, DL_SPI_PARITY_ODD, DL_SPI_PARITY_NONE = (SPI_CTL1_PREN_DISABLE \| SPI_CTL1_PTEN_DISABLE) }

enum	DL_SPI_FRAME_FORMAT { DL_SPI_FRAME_FORMAT_MOTO3_POL0_PHA0, DL_SPI_FRAME_FORMAT_MOTO3_POL0_PHA1, DL_SPI_FRAME_FORMAT_MOTO3_POL1_PHA0, DL_SPI_FRAME_FORMAT_MOTO3_POL1_PHA1, DL_SPI_FRAME_FORMAT_MOTO4_POL0_PHA0, DL_SPI_FRAME_FORMAT_MOTO4_POL0_PHA1, DL_SPI_FRAME_FORMAT_MOTO4_POL1_PHA0, DL_SPI_FRAME_FORMAT_MOTO4_POL1_PHA1, DL_SPI_FRAME_FORMAT_TI_SYNC = (SPI_CTL0_FRF_TI_SYNC) }

enum	DL_SPI_MODE { DL_SPI_MODE_CONTROLLER = (SPI_CTL1_CP_ENABLE), DL_SPI_MODE_PERIPHERAL = (SPI_CTL1_CP_DISABLE) }

enum	DL_SPI_BIT_ORDER { DL_SPI_BIT_ORDER_MSB_FIRST = (SPI_CTL1_MSB_ENABLE), DL_SPI_BIT_ORDER_LSB_FIRST = (SPI_CTL1_MSB_DISABLE) }

enum	DL_SPI_DATA_SIZE { DL_SPI_DATA_SIZE_4 = (SPI_CTL0_DSS_DSS_4), DL_SPI_DATA_SIZE_5 = (SPI_CTL0_DSS_DSS_5), DL_SPI_DATA_SIZE_6 = (SPI_CTL0_DSS_DSS_6), DL_SPI_DATA_SIZE_7 = (SPI_CTL0_DSS_DSS_7), DL_SPI_DATA_SIZE_8 = (SPI_CTL0_DSS_DSS_8), DL_SPI_DATA_SIZE_9 = (SPI_CTL0_DSS_DSS_9), DL_SPI_DATA_SIZE_10 = (SPI_CTL0_DSS_DSS_10), DL_SPI_DATA_SIZE_11 = (SPI_CTL0_DSS_DSS_11), DL_SPI_DATA_SIZE_12 = (SPI_CTL0_DSS_DSS_12), DL_SPI_DATA_SIZE_13 = (SPI_CTL0_DSS_DSS_13), DL_SPI_DATA_SIZE_14 = (SPI_CTL0_DSS_DSS_14), DL_SPI_DATA_SIZE_15 = (SPI_CTL0_DSS_DSS_15), DL_SPI_DATA_SIZE_16 = (SPI_CTL0_DSS_DSS_16) }

enum	DL_SPI_CHIP_SELECT { DL_SPI_CHIP_SELECT_0 = (SPI_CTL0_CSSEL_CSSEL_0), DL_SPI_CHIP_SELECT_1 = (SPI_CTL0_CSSEL_CSSEL_1), DL_SPI_CHIP_SELECT_2 = (SPI_CTL0_CSSEL_CSSEL_2), DL_SPI_CHIP_SELECT_3 = (SPI_CTL0_CSSEL_CSSEL_3), DL_SPI_CHIP_SELECT_NONE = (0) }

enum	DL_SPI_TX_FIFO_LEVEL { DL_SPI_TX_FIFO_LEVEL_3_4_EMPTY = SPI_IFLS_TXIFLSEL_LVL_3_4, DL_SPI_TX_FIFO_LEVEL_1_2_EMPTY = SPI_IFLS_TXIFLSEL_LVL_1_2, DL_SPI_TX_FIFO_LEVEL_1_4_EMPTY = SPI_IFLS_TXIFLSEL_LVL_1_4, DL_SPI_TX_FIFO_LEVEL_EMPTY = SPI_IFLS_TXIFLSEL_LVL_EMPTY, DL_SPI_TX_FIFO_LEVEL_ONE_FRAME = SPI_IFLS_TXIFLSEL_LEVEL_1 }

enum	DL_SPI_RX_FIFO_LEVEL { DL_SPI_RX_FIFO_LEVEL_ONE_FRAME = SPI_IFLS_RXIFLSEL_LEVEL_1, DL_SPI_RX_FIFO_LEVEL_FULL = SPI_IFLS_RXIFLSEL_LVL_FULL, DL_SPI_RX_FIFO_LEVEL_3_4_FULL = SPI_IFLS_RXIFLSEL_LVL_3_4, DL_SPI_RX_FIFO_LEVEL_1_2_FULL = SPI_IFLS_RXIFLSEL_LVL_1_2, DL_SPI_RX_FIFO_LEVEL_1_4_FULL = SPI_IFLS_RXIFLSEL_LVL_1_4 }

enum	DL_SPI_IIDX { DL_SPI_IIDX_DMA_DONE_TX = SPI_CPU_INT_IIDX_STAT_DMA_DONE_TX_EVT, DL_SPI_IIDX_DMA_DONE_RX = SPI_CPU_INT_IIDX_STAT_DMA_DONE_RX_EVT, DL_SPI_IIDX_IDLE = SPI_CPU_INT_IIDX_STAT_IDLE_EVT, DL_SPI_IIDX_TX_EMPTY = SPI_CPU_INT_IIDX_STAT_TX_EMPTY, DL_SPI_IIDX_TX = SPI_CPU_INT_IIDX_STAT_TX_EVT, DL_SPI_IIDX_RX = SPI_CPU_INT_IIDX_STAT_RX_EVT, DL_SPI_IIDX_RX_TIMEOUT = SPI_CPU_INT_IIDX_STAT_RTOUT_EVT, DL_SPI_IIDX_RX_FULL = SPI_CPU_INT_IIDX_STAT_RXFULL_EVT, DL_SPI_IIDX_TX_UNDERFLOW = SPI_CPU_INT_IIDX_STAT_TXFIFO_UNF_EVT, DL_SPI_IIDX_PARITY_ERROR = SPI_CPU_INT_IIDX_STAT_PER_EVT, DL_SPI_IIDX_RX_OVERFLOW = SPI_CPU_INT_IIDX_STAT_RXFIFO_OFV_EVT }

enum	DL_SPI_CLOCK_DIVIDE_RATIO { DL_SPI_CLOCK_DIVIDE_RATIO_1 = SPI_CLKDIV_RATIO_DIV_BY_1, DL_SPI_CLOCK_DIVIDE_RATIO_2 = SPI_CLKDIV_RATIO_DIV_BY_2, DL_SPI_CLOCK_DIVIDE_RATIO_3 = SPI_CLKDIV_RATIO_DIV_BY_3, DL_SPI_CLOCK_DIVIDE_RATIO_4 = SPI_CLKDIV_RATIO_DIV_BY_4, DL_SPI_CLOCK_DIVIDE_RATIO_5 = SPI_CLKDIV_RATIO_DIV_BY_5, DL_SPI_CLOCK_DIVIDE_RATIO_6 = SPI_CLKDIV_RATIO_DIV_BY_6, DL_SPI_CLOCK_DIVIDE_RATIO_7 = SPI_CLKDIV_RATIO_DIV_BY_7, DL_SPI_CLOCK_DIVIDE_RATIO_8 = SPI_CLKDIV_RATIO_DIV_BY_8 }

enum	DL_SPI_CLOCK { DL_SPI_CLOCK_BUSCLK = SPI_CLKSEL_SYSCLK_SEL_ENABLE, DL_SPI_CLOCK_MFCLK = SPI_CLKSEL_MFCLK_SEL_ENABLE, DL_SPI_CLOCK_LFCLK = SPI_CLKSEL_LFCLK_SEL_ENABLE }

Functions
void	DL_SPI_init (SPI_Regs spi, DL_SPI_Config config)
	Initialize the SPI peripheral. More...

__STATIC_INLINE void	DL_SPI_enablePower (SPI_Regs *spi)
	Enables power on SPI module. More...

__STATIC_INLINE void	DL_SPI_disablePower (SPI_Regs *spi)
	Disables power on spi module. More...

__STATIC_INLINE bool	DL_SPI_isPowerEnabled (SPI_Regs *spi)
	Returns if power on spi module. More...

__STATIC_INLINE void	DL_SPI_reset (SPI_Regs *spi)
	Resets spi peripheral. More...

__STATIC_INLINE bool	DL_SPI_isReset (SPI_Regs *spi)
	Returns if spi peripheral was reset. More...

__STATIC_INLINE void	DL_SPI_enable (SPI_Regs *spi)
	Enable the SPI peripheral. More...

__STATIC_INLINE bool	DL_SPI_isEnabled (SPI_Regs *spi)
	Checks if the SPI peripheral is enabled. More...

__STATIC_INLINE void	DL_SPI_disable (SPI_Regs *spi)
	Disable the SPI peripheral. More...

void	DL_SPI_setClockConfig (SPI_Regs spi, DL_SPI_ClockConfig config)
	Configure SPI source clock. More...

void	DL_SPI_getClockConfig (SPI_Regs spi, DL_SPI_ClockConfig config)
	Get SPI source clock configuration. More...

__STATIC_INLINE bool	DL_SPI_isBusy (SPI_Regs *spi)
	Checks if the SPI is busy transmitting. More...

__STATIC_INLINE bool	DL_SPI_isTXFIFOEmpty (SPI_Regs *spi)
	Checks if the TX FIFO is empty. More...

__STATIC_INLINE bool	DL_SPI_isTXFIFOFull (SPI_Regs *spi)
	Checks if the TX FIFO is full. More...

__STATIC_INLINE bool	DL_SPI_isRXFIFOEmpty (SPI_Regs *spi)
	Checks if the RX FIFO is empty. More...

__STATIC_INLINE bool	DL_SPI_isRXFIFOFull (SPI_Regs *spi)
	Checks if the RX FIFO is full. More...

__STATIC_INLINE void	DL_SPI_setParity (SPI_Regs *spi, DL_SPI_PARITY parity)
	Sets the parity configuration used for transactions. More...

__STATIC_INLINE DL_SPI_PARITY	DL_SPI_getParity (SPI_Regs *spi)
	Get the current receive and transmit parity configuration. More...

__STATIC_INLINE void	DL_SPI_enableReceiveParity (SPI_Regs *spi)
	Enables receive parity. More...

__STATIC_INLINE void	DL_SPI_disableReceiveParity (SPI_Regs *spi)
	Disables receive parity. More...

__STATIC_INLINE bool	DL_SPI_isReceiveParityEnabled (SPI_Regs *spi)
	Checks if receive parity is enabled. More...

__STATIC_INLINE void	DL_SPI_enableTransmitParity (SPI_Regs *spi)
	Enables transmit parity. More...

__STATIC_INLINE void	DL_SPI_disableTransmitParity (SPI_Regs *spi)
	Disables transmit parity. More...

__STATIC_INLINE bool	DL_SPI_isTransmitParityEnabled (SPI_Regs *spi)
	Checks if transmit parity is enabled. More...

__STATIC_INLINE void	DL_SPI_setFrameFormat (SPI_Regs *spi, DL_SPI_FRAME_FORMAT frameFormat)
	Set the frame format to use. More...

__STATIC_INLINE DL_SPI_FRAME_FORMAT	DL_SPI_getFrameFormat (SPI_Regs *spi)
	Get the frame format configuration. More...

__STATIC_INLINE void	DL_SPI_setDataSize (SPI_Regs *spi, DL_SPI_DATA_SIZE dataSize)
	Set the size for transfers. More...

__STATIC_INLINE DL_SPI_DATA_SIZE	DL_SPI_getDataSize (SPI_Regs *spi)
	Get the configured size for transfers. More...

__STATIC_INLINE void	DL_SPI_setMode (SPI_Regs *spi, DL_SPI_MODE mode)
	Set whether the device should be in controller/peripheral mode. More...

__STATIC_INLINE DL_SPI_MODE	DL_SPI_getMode (SPI_Regs *spi)
	Get the current mode for the SPI (controller/peripheral) More...

__STATIC_INLINE void	DL_SPI_setBitOrder (SPI_Regs *spi, DL_SPI_BIT_ORDER bitOrder)
	Set the bit order used for transfers. More...

__STATIC_INLINE DL_SPI_BIT_ORDER	DL_SPI_getBitOrder (SPI_Regs *spi)
	Get the current bit order used for transfers. More...

__STATIC_INLINE void	DL_SPI_enableLoopbackMode (SPI_Regs *spi)
	Enables loopback mode. More...

__STATIC_INLINE void	DL_SPI_disableLoopbackMode (SPI_Regs *spi)
	Disables loopback mode. More...

__STATIC_INLINE bool	DL_SPI_isLoopbackModeEnabled (SPI_Regs *spi)
	Checks if the loopback mode is enabled. More...

__STATIC_INLINE void	DL_SPI_setRepeatTransmit (SPI_Regs *spi, uint32_t numRepeats)
	Set counter for repeated transmit. More...

__STATIC_INLINE uint32_t	DL_SPI_getRepeatTransmit (SPI_Regs *spi)
	Get counter for repeated transmit. More...

__STATIC_INLINE void	DL_SPI_enablePeripheralAlignDataOnChipSelect (SPI_Regs *spi)
	Enables data alignment on chip select for peripherals. More...

__STATIC_INLINE void	DL_SPI_disablePeripheralAlignDataOnChipSelect (SPI_Regs *spi)
	Disables data alignment on chip select for peripherals. More...

__STATIC_INLINE bool	DL_SPI_isPeripheralAlignDataOnChipSelectEnabled (SPI_Regs *spi)
	Checks if data alignment on chip select for peripherals is enabled. More...

__STATIC_INLINE void	DL_SPI_enablePacking (SPI_Regs *spi)
	Enables packing feature. More...

__STATIC_INLINE void	DL_SPI_disablePacking (SPI_Regs *spi)
	Disables packing feature. More...

__STATIC_INLINE bool	DL_SPI_isPackingEnabled (SPI_Regs *spi)
	Checks if packing feature is enabled. More...

__STATIC_INLINE void	DL_SPI_setChipSelect (SPI_Regs *spi, DL_SPI_CHIP_SELECT chipSelect)
	Set chip select used for controller or peripheral mode. More...

__STATIC_INLINE DL_SPI_CHIP_SELECT	DL_SPI_getChipSelect (SPI_Regs *spi)
	Get chip select used for controller or peripheral mode. More...

__STATIC_INLINE void	DL_SPI_setPeripheralReceiveTimeout (SPI_Regs *spi, uint32_t timeout)
	Set peripheral receive timeout. More...

__STATIC_INLINE uint32_t	DL_SPI_getPeripheralReceiveTimeout (SPI_Regs *spi)
	Get peripheral receive timeout. More...

__STATIC_INLINE void	DL_SPI_setControllerCommandDataModeConfig (SPI_Regs *spi, uint32_t config)
	Configure the command/data mode. More...

__STATIC_INLINE uint32_t	DL_SPI_getControllerCommandDataModeConfig (SPI_Regs *spi)
	Get the command/data mode configuration. More...

__STATIC_INLINE void	DL_SPI_enableControllerCommandDataMode (SPI_Regs *spi)
	Enables command/data mode. More...

__STATIC_INLINE void	DL_SPI_disableControllerCommandDataMode (SPI_Regs *spi)
	Disables command/data mode. More...

__STATIC_INLINE bool	DL_SPI_isControllerCommandDataModeEnabled (SPI_Regs *spi)
	Checks if command/data mode is enabled. More...

__STATIC_INLINE void	DL_SPI_enablePeripheralDataOutput (SPI_Regs *spi)
	Enables peripheral data output. More...

__STATIC_INLINE void	DL_SPI_disablePeripheralDataOutput (SPI_Regs *spi)
	Disables peripheral data output. More...

__STATIC_INLINE bool	DL_SPI_isPeripheralDataOutputEnabled (SPI_Regs *spi)
	Checks if peripheral data output is enabled. More...

__STATIC_INLINE void	DL_SPI_setDelayedSampling (SPI_Regs *spi, uint32_t delay)
	Set the delay sampling. More...

__STATIC_INLINE uint32_t	DL_SPI_getDelayedSampling (SPI_Regs *spi)
	Get the delay sampling. More...

__STATIC_INLINE void	DL_SPI_setFIFOThreshold (SPI_Regs *spi, DL_SPI_RX_FIFO_LEVEL rxThreshold, DL_SPI_TX_FIFO_LEVEL txThreshold)
	Set the RX and TX FIFO interrupt threshold level. More...

__STATIC_INLINE DL_SPI_TX_FIFO_LEVEL	DL_SPI_getTXFIFOThreshold (SPI_Regs *spi)
	Get the TX FIFO interrupt threshold level. More...

__STATIC_INLINE DL_SPI_RX_FIFO_LEVEL	DL_SPI_getRXFIFOThreshold (SPI_Regs *spi)
	Get the RX FIFO interrupt threshold level. More...

__STATIC_INLINE void	DL_SPI_setBitRateSerialClockDivider (SPI_Regs *spi, uint32_t SCR)
	Set the SPI bit rate serial clock divider (SCR) More...

__STATIC_INLINE uint32_t	DL_SPI_getBitRateSerialClockDivider (SPI_Regs *spi)
	Get the SPI bit rate serial clock divider (SCR) More...

__STATIC_INLINE void	DL_SPI_transmitData8 (SPI_Regs *spi, uint8_t data)
	Writes 8-bit data into the TX FIFO for transmit. More...

__STATIC_INLINE void	DL_SPI_transmitData16 (SPI_Regs *spi, uint16_t data)
	Writes 16-bit data into the TX FIFO for transmit. More...

__STATIC_INLINE void	DL_SPI_transmitData32 (SPI_Regs *spi, uint32_t data)
	Writes 32-bit data into the TX FIFO for transmit. More...

__STATIC_INLINE uint8_t	DL_SPI_receiveData8 (SPI_Regs *spi)
	Reads 8-bit data from the RX FIFO. More...

__STATIC_INLINE uint16_t	DL_SPI_receiveData16 (SPI_Regs *spi)
	Reads 16-bit data from the RX FIFO. More...

__STATIC_INLINE uint32_t	DL_SPI_receiveData32 (SPI_Regs *spi)
	Reads 32-bit data from the RX FIFO. More...

__STATIC_INLINE void	DL_SPI_enableInterrupt (SPI_Regs *spi, uint32_t interruptMask)
	Enable SPI interrupts. More...

__STATIC_INLINE void	DL_SPI_disableInterrupt (SPI_Regs *spi, uint32_t interruptMask)
	Disable SPI interrupts. More...

__STATIC_INLINE uint32_t	DL_SPI_getEnabledInterrupts (SPI_Regs *spi, uint32_t interruptMask)
	Check which SPI interrupts are enabled. More...

__STATIC_INLINE uint32_t	DL_SPI_getEnabledInterruptStatus (SPI_Regs *spi, uint32_t interruptMask)
	Check interrupt flag of enabled SPI interrupts. More...

__STATIC_INLINE uint32_t	DL_SPI_getRawInterruptStatus (SPI_Regs *spi, uint32_t interruptMask)
	Check interrupt flag of any SPI interrupt. More...

__STATIC_INLINE DL_SPI_IIDX	DL_SPI_getPendingInterrupt (SPI_Regs *spi)
	Get highest priority pending SPI interrupt. More...

__STATIC_INLINE void	DL_SPI_clearInterruptStatus (SPI_Regs *spi, uint32_t interruptMask)
	Clear pending SPI interrupts. More...

void	DL_SPI_transmitDataBlocking8 (SPI_Regs *spi, uint8_t data)
	Blocks to ensure transmit is ready before sending data. More...

void	DL_SPI_transmitDataBlocking16 (SPI_Regs *spi, uint16_t data)
	Blocks to ensure transmit is ready before sending data. More...

void	DL_SPI_transmitDataBlocking32 (SPI_Regs *spi, uint32_t data)
	Blocks to ensure transmit is ready before sending data. More...

uint8_t	DL_SPI_receiveDataBlocking8 (SPI_Regs *spi)
	Blocks to ensure receive is ready before reading data. More...

uint16_t	DL_SPI_receiveDataBlocking16 (SPI_Regs *spi)
	Blocks to ensure receive is ready before reading data. More...

uint32_t	DL_SPI_receiveDataBlocking32 (SPI_Regs *spi)
	Blocks to ensure receive is ready before reading data. More...

bool	DL_SPI_transmitDataCheck8 (SPI_Regs *spi, uint8_t data)
	Checks the TX FIFO before trying to transmit data. More...

bool	DL_SPI_transmitDataCheck16 (SPI_Regs *spi, uint16_t data)
	Checks the TX FIFO before trying to transmit data. More...

bool	DL_SPI_transmitDataCheck32 (SPI_Regs *spi, uint32_t data)
	Checks the TX FIFO before trying to transmit data. More...

bool	DL_SPI_receiveDataCheck8 (SPI_Regs spi, uint8_t buffer)
	Checks the RX FIFO before trying to transmit data. More...

bool	DL_SPI_receiveDataCheck16 (SPI_Regs spi, uint16_t buffer)
	Checks the RX FIFO before trying to transmit data. More...

bool	DL_SPI_receiveDataCheck32 (SPI_Regs spi, uint32_t buffer)
	Checks the RX FIFO before trying to transmit data. More...

uint32_t	DL_SPI_drainRXFIFO8 (SPI_Regs spi, uint8_t buffer, uint32_t maxCount)
	Read all available data out of the RX FIFO using 8 bit access. More...

uint32_t	DL_SPI_drainRXFIFO16 (SPI_Regs spi, uint16_t buffer, uint32_t maxCount)
	Read all available data out of the RX FIFO using 16 bit access. More...

uint32_t	DL_SPI_drainRXFIFO32 (SPI_Regs spi, uint32_t buffer, uint32_t maxCount)
	Read all available data out of the RX FIFO using 32 bit access. More...

uint32_t	DL_SPI_fillTXFIFO8 (SPI_Regs spi, uint8_t buffer, uint32_t count)
	Fill the TX FIFO using 8 bit access. More...

uint32_t	DL_SPI_fillTXFIFO16 (SPI_Regs spi, uint16_t buffer, uint32_t count)
	Fill the TX FIFO using 16 bit access. More...

uint32_t	DL_SPI_fillTXFIFO32 (SPI_Regs spi, uint32_t buffer, uint32_t count)
	Fill the TX FIFO using 32 bit access. More...

__STATIC_INLINE void	DL_SPI_enableDMAReceiveEvent (SPI_Regs *spi, uint32_t interrupt)
	Enable SPI interrupt for triggering the DMA receive event. More...

__STATIC_INLINE void	DL_SPI_enableDMATransmitEvent (SPI_Regs *spi)
	Enable SPI interrupt for triggering the DMA transmit event. More...

__STATIC_INLINE void	DL_SPI_disableDMAReceiveEvent (SPI_Regs *spi, uint32_t interrupt)
	Disables SPI interrupt from triggering the DMA receive event. More...

__STATIC_INLINE void	DL_SPI_disableDMATransmitEvent (SPI_Regs *spi)
	Disables SPI interrupt from triggering the DMA transmit event. More...

__STATIC_INLINE uint32_t	DL_SPI_getEnabledDMAReceiveEvent (SPI_Regs *spi, uint32_t interruptMask)
	Check which SPI interrupt for DMA receive events is enabled. More...

__STATIC_INLINE uint32_t	DL_SPI_getEnabledDMATransmitEvent (SPI_Regs *spi)
	Check if SPI interrupt for DMA transmit event is enabled. More...

__STATIC_INLINE uint32_t	DL_SPI_getEnabledDMAReceiveEventStatus (SPI_Regs *spi, uint32_t interruptMask)
	Check interrupt flag of enabled SPI interrupt for DMA receive event. More...

__STATIC_INLINE uint32_t	DL_SPI_getEnabledDMATransmitEventStatus (SPI_Regs *spi)
	Check interrupt flag of enabled SPI interrupt for DMA transmit event. More...

__STATIC_INLINE uint32_t	DL_SPI_getRawDMAReceiveEventStatus (SPI_Regs *spi, uint32_t interruptMask)
	Check interrupt flag of any SPI interrupt for DMA receive event. More...

__STATIC_INLINE uint32_t	DL_SPI_getRawDMATransmitEventStatus (SPI_Regs *spi)
	Check interrupt flag of any SPI interrupt for DMA transmit event. More...

__STATIC_INLINE DL_SPI_DMA_IIDX_RX	DL_SPI_getPendingDMAReceiveEvent (SPI_Regs *spi)
	Get highest priority pending SPI interrupt for DMA receive event. More...

__STATIC_INLINE DL_SPI_DMA_IIDX_TX	DL_SPI_getPendingDMATransmitEvent (SPI_Regs *spi)
	Get highest priority pending SPI interrupt for DMA transmit event. More...

__STATIC_INLINE void	DL_SPI_clearDMAReceiveEventStatus (SPI_Regs *spi, uint32_t interruptMask)
	Clear pending SPI interrupts for DMA receive event. More...

__STATIC_INLINE void	DL_SPI_clearDMATransmitEventStatus (SPI_Regs *spi)
	Clear pending SPI interrupt for DMA transmit event. More...

bool	DL_SPI_saveConfiguration (SPI_Regs spi, DL_SPI_backupConfig ptr)
	Save SPI configuration before entering a power loss state. More...

bool	DL_SPI_restoreConfiguration (SPI_Regs spi, DL_SPI_backupConfig ptr)
	Restore SPI configuration after leaving a power loss state. More...

Detailed Description

Overview

The Serial Peripheral Interface Driver Library allows full configuration of the MSPM0 SPI module. The serial peripheral interface (SPI) module provides a standardized serial interface to transfer data between MSPM0 devices and other external devices with SPI interface.

Enumeration Type Documentation

§ DL_SPI_DMA_IIDX_RX

enum DL_SPI_DMA_IIDX_RX

Enumerator
DL_SPI_DMA_IIDX_RX_TRIGGER	SPI interrupt index for enabling SPI receive as DMA trigger
DL_SPI_DMA_IIDX_RX_TIMEOUT_TRIGGER	SPI interrupt index for enabling SPI receive timeout as DMA trigger

§ DL_SPI_DMA_IIDX_TX

enum DL_SPI_DMA_IIDX_TX

Enumerator
DL_SPI_DMA_IIDX_TX_TRIGGER	SPI interrupt index for enabling SPI transmit as DMA trigger

§ DL_SPI_PARITY

enum DL_SPI_PARITY

Enumerator
DL_SPI_PARITY_EVEN	Use even parity, enable transmit and receive parity
DL_SPI_PARITY_ODD	Use odd parity, enable transmit and receive parity
DL_SPI_PARITY_NONE	Disable receive and transmit parity

§ DL_SPI_FRAME_FORMAT

enum DL_SPI_FRAME_FORMAT

Enumerator
DL_SPI_FRAME_FORMAT_MOTO3_POL0_PHA0	Motorola 3 Wire with Polarity 0, Phase 0
DL_SPI_FRAME_FORMAT_MOTO3_POL0_PHA1	Motorola 3 Wire with Polarity 0, Phase 1
DL_SPI_FRAME_FORMAT_MOTO3_POL1_PHA0	Motorola 3 Wire with Polarity 1, Phase 0
DL_SPI_FRAME_FORMAT_MOTO3_POL1_PHA1	Motorola 3 Wire with Polarity 1, Phase 1
DL_SPI_FRAME_FORMAT_MOTO4_POL0_PHA0	Motorola 4 Wire with Polarity 0, Phase 0
DL_SPI_FRAME_FORMAT_MOTO4_POL0_PHA1	Motorola 4 Wire with Polarity 0, Phase 1
DL_SPI_FRAME_FORMAT_MOTO4_POL1_PHA0	Motorola 4 Wire with Polarity 1, Phase 0
DL_SPI_FRAME_FORMAT_MOTO4_POL1_PHA1	Motorola 4 Wire with Polarity 1, Phase 1
DL_SPI_FRAME_FORMAT_TI_SYNC	TI Sync Frame Format

§ DL_SPI_MODE

enum DL_SPI_MODE

Enumerator
DL_SPI_MODE_CONTROLLER	Controller mode
DL_SPI_MODE_PERIPHERAL	Peripheral mode

§ DL_SPI_BIT_ORDER

enum DL_SPI_BIT_ORDER

Enumerator
DL_SPI_BIT_ORDER_MSB_FIRST	MSB First
DL_SPI_BIT_ORDER_LSB_FIRST	LSB First

§ DL_SPI_DATA_SIZE

enum DL_SPI_DATA_SIZE

Enumerator
DL_SPI_DATA_SIZE_4	Data size 4 bits
DL_SPI_DATA_SIZE_5	Data size 5 bits
DL_SPI_DATA_SIZE_6	Data size 6 bits
DL_SPI_DATA_SIZE_7	Data size 7 bits
DL_SPI_DATA_SIZE_8	Data size 8 bits
DL_SPI_DATA_SIZE_9	Data size 9 bits
DL_SPI_DATA_SIZE_10	Data size 10 bits
DL_SPI_DATA_SIZE_11	Data size 11 bits
DL_SPI_DATA_SIZE_12	Data size 12 bits
DL_SPI_DATA_SIZE_13	Data size 13 bits
DL_SPI_DATA_SIZE_14	Data size 14 bits
DL_SPI_DATA_SIZE_15	Data size 15 bits
DL_SPI_DATA_SIZE_16	Data size 16 bits

§ DL_SPI_CHIP_SELECT

enum DL_SPI_CHIP_SELECT

Enumerator
DL_SPI_CHIP_SELECT_0	Chip Select 0
DL_SPI_CHIP_SELECT_1	Chip Select 1
DL_SPI_CHIP_SELECT_2	Chip Select 2
DL_SPI_CHIP_SELECT_3	Chip Select 3
DL_SPI_CHIP_SELECT_NONE	No chip select

§ DL_SPI_TX_FIFO_LEVEL

enum DL_SPI_TX_FIFO_LEVEL

Enumerator
DL_SPI_TX_FIFO_LEVEL_3_4_EMPTY	Interrupt triggers when TX FIFO <= 3/4 empty
DL_SPI_TX_FIFO_LEVEL_1_2_EMPTY	Interrupt triggers when TX FIFO <= 1/2 empty (default)
DL_SPI_TX_FIFO_LEVEL_1_4_EMPTY	Interrupt triggers when TX FIFO <= 1/4 empty
DL_SPI_TX_FIFO_LEVEL_EMPTY	Interrupt triggers when TX FIFO is empty
DL_SPI_TX_FIFO_LEVEL_ONE_FRAME	Interrupt triggers when TX FIFO has >= 1 frame free. Should be used with DMA

§ DL_SPI_RX_FIFO_LEVEL

enum DL_SPI_RX_FIFO_LEVEL

Enumerator
DL_SPI_RX_FIFO_LEVEL_ONE_FRAME	Interrupt triggers when RX FIFO contains >= 1 frame. Should be used with DMA
DL_SPI_RX_FIFO_LEVEL_FULL	Interrupt triggers when RX FIFO is full
DL_SPI_RX_FIFO_LEVEL_3_4_FULL	Interrupt triggers when RX FIFO >= 3/4 full
DL_SPI_RX_FIFO_LEVEL_1_2_FULL	Interrupt triggers when RX FIFO >= 1/2 full (default)
DL_SPI_RX_FIFO_LEVEL_1_4_FULL	Interrupt triggers when RX FIFO >= 1/4 full

§ DL_SPI_IIDX

enum DL_SPI_IIDX

Enumerator
DL_SPI_IIDX_DMA_DONE_TX	SPI interrupt index for DMA Done 1 event for transmit
DL_SPI_IIDX_DMA_DONE_RX	SPI interrupt index for DMA Done 1 event for receive
DL_SPI_IIDX_IDLE	SPI interrupt index for SPI to signal it has finished transfers and changed into idle mode
DL_SPI_IIDX_TX_EMPTY	SPI interrupt index for transmit FIFO empty
DL_SPI_IIDX_TX	SPI interrupt index for transmit FIFO
DL_SPI_IIDX_RX	SPI interrupt index for receive FIFO
DL_SPI_IIDX_RX_TIMEOUT	SPI interrupt index for receive timeout
DL_SPI_IIDX_RX_FULL	SPI interrupt index for receive FIFO full
DL_SPI_IIDX_TX_UNDERFLOW	SPI interrupt index for transmit FIFO underflow
DL_SPI_IIDX_PARITY_ERROR	SPI interrupt index for parity error
DL_SPI_IIDX_RX_OVERFLOW	SPI interrupt index for receive FIFO overflow

§ DL_SPI_CLOCK_DIVIDE_RATIO

enum DL_SPI_CLOCK_DIVIDE_RATIO

Enumerator
DL_SPI_CLOCK_DIVIDE_RATIO_1	SPI source clock divide ratio set to 1
DL_SPI_CLOCK_DIVIDE_RATIO_2	SPI source clock divide ratio set to 2
DL_SPI_CLOCK_DIVIDE_RATIO_3	SPI source clock divide ratio set to 3
DL_SPI_CLOCK_DIVIDE_RATIO_4	SPI source clock divide ratio set to 4
DL_SPI_CLOCK_DIVIDE_RATIO_5	SPI source clock divide ratio set to 5
DL_SPI_CLOCK_DIVIDE_RATIO_6	SPI source clock divide ratio set to 6
DL_SPI_CLOCK_DIVIDE_RATIO_7	SPI source clock divide ratio set to 7
DL_SPI_CLOCK_DIVIDE_RATIO_8	SPI source clock divide ratio set to 8

§ DL_SPI_CLOCK

enum DL_SPI_CLOCK

Enumerator
DL_SPI_CLOCK_BUSCLK	Selects BUSCLK as the clock source
DL_SPI_CLOCK_MFCLK	Selects MFCLK as the clock source
DL_SPI_CLOCK_LFCLK	Selects LFCLK as the clock source

Function Documentation

§ DL_SPI_init()

void DL_SPI_init	(	SPI_Regs *	spi,
		DL_SPI_Config *	config
	)

Initialize the SPI peripheral.

Initializes all the common configurable options for the SPI peripheral. Any other custom configuration can be done after calling this API. The SPI is not enabled in this API.

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[in]	config	Configuration for SPI peripheral

§ DL_SPI_enablePower()

__STATIC_INLINE void DL_SPI_enablePower ( SPI_Regs * spi )

Enables power on SPI module.

Parameters

spi	Pointer to the register overlay for the peripheral

§ DL_SPI_disablePower()

__STATIC_INLINE void DL_SPI_disablePower ( SPI_Regs * spi )

Disables power on spi module.

Parameters

spi	Pointer to the register overlay for the peripheral

§ DL_SPI_isPowerEnabled()

__STATIC_INLINE bool DL_SPI_isPowerEnabled ( SPI_Regs * spi )

Returns if power on spi module.

Parameters

spi	Pointer to the register overlay for the peripheral

Returns: true if power is enabled; false if power is disabled

§ DL_SPI_reset()

__STATIC_INLINE void DL_SPI_reset ( SPI_Regs * spi )

Resets spi peripheral.

Parameters

spi	Pointer to the register overlay for the peripheral

§ DL_SPI_isReset()

__STATIC_INLINE bool DL_SPI_isReset ( SPI_Regs * spi )

Returns if spi peripheral was reset.

Parameters

spi	Pointer to the register overlay for the peripheral

Returns: true if peripheral was reset; false if peripheral wasn't reset

§ DL_SPI_enable()

__STATIC_INLINE void DL_SPI_enable ( SPI_Regs * spi )

Enable the SPI peripheral.

Parameters

[in] spi Pointer to the register overlay for the peripheral

§ DL_SPI_isEnabled()

__STATIC_INLINE bool DL_SPI_isEnabled ( SPI_Regs * spi )

Checks if the SPI peripheral is enabled.

Parameters

[in] spi Pointer to the register overlay for the peripheral

Returns: Returns the enabled status of the SPI

Return values

true	The SPI peripheral is enabled
false	The SPI peripheral is disabled

§ DL_SPI_disable()

__STATIC_INLINE void DL_SPI_disable ( SPI_Regs * spi )

Disable the SPI peripheral.

Parameters

[in] spi Pointer to the register overlay for the peripheral

References DL_SPI_getClockConfig(), and DL_SPI_setClockConfig().

§ DL_SPI_setClockConfig()

void DL_SPI_setClockConfig	(	SPI_Regs *	spi,
		DL_SPI_ClockConfig *	config
	)

Configure SPI source clock.

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[in]	config	Pointer to the clock configuration struct DL_SPI_ClockConfig.

Referenced by DL_SPI_disable().

§ DL_SPI_getClockConfig()

void DL_SPI_getClockConfig	(	SPI_Regs *	spi,
		DL_SPI_ClockConfig *	config
	)

Get SPI source clock configuration.

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[in]	config	Pointer to the clock configuration struct DL_SPI_ClockConfig.

Referenced by DL_SPI_disable().

§ DL_SPI_isBusy()

__STATIC_INLINE bool DL_SPI_isBusy ( SPI_Regs * spi )

Checks if the SPI is busy transmitting.

Parameters

[in] spi Pointer to the register overlay for the peripheral

Returns: Returns the busy status of the SPI

Return values

true	The SPI is transmitting
false	The SPI is idle

§ DL_SPI_isTXFIFOEmpty()

__STATIC_INLINE bool DL_SPI_isTXFIFOEmpty ( SPI_Regs * spi )

Checks if the TX FIFO is empty.

Parameters

[in] spi Pointer to the register overlay for the peripheral

Returns: Returns the empty status of the TX FIFO

Return values

true	The TX FIFO is empty
false	The TX FIFO is not empty

§ DL_SPI_isTXFIFOFull()

__STATIC_INLINE bool DL_SPI_isTXFIFOFull ( SPI_Regs * spi )

Checks if the TX FIFO is full.

Parameters

[in] spi Pointer to the register overlay for the peripheral

Returns: Returns the full status of the TX FIFO

Return values

true	The TX FIFO is full
false	The TX FIFO is not full

§ DL_SPI_isRXFIFOEmpty()

__STATIC_INLINE bool DL_SPI_isRXFIFOEmpty ( SPI_Regs * spi )

Checks if the RX FIFO is empty.

Parameters

[in] spi Pointer to the register overlay for the peripheral

Returns: Returns the empty status of the RX FIFO

Return values

true	The RX FIFO is empty
false	The RX FIFO is not empty

§ DL_SPI_isRXFIFOFull()

__STATIC_INLINE bool DL_SPI_isRXFIFOFull ( SPI_Regs * spi )

Checks if the RX FIFO is full.

Parameters

[in] spi Pointer to the register overlay for the peripheral

Returns: Returns the full status of the RX FIFO

Return values

true	The RX FIFO is full
false	The RX FIFO is not full

§ DL_SPI_setParity()

__STATIC_INLINE void DL_SPI_setParity	(	SPI_Regs *	spi,
		DL_SPI_PARITY	parity
	)

Sets the parity configuration used for transactions.

This API sets the configuration for both receive parity and transmit parity. This includes which bit is used, and whether even or odd parity is set.

To individually enable or dsiable the receive or transmit parity, refer to the APIs listed below.

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[in]	parity	Parity configuration to use. One of DL_SPI_PARITY.

See also: DL_SPI_init; DL_SPI_enableReceiveParity; DL_SPI_disableReceiveParity; DL_SPI_enableTransmitParity; DL_SPI_disableTransmitParity

References DL_Common_updateReg().

§ DL_SPI_getParity()

__STATIC_INLINE DL_SPI_PARITY DL_SPI_getParity ( SPI_Regs * spi )

Get the current receive and transmit parity configuration.

Parameters

[in] spi Pointer to the register overlay for the peripheral

Returns: The current parity configuration being used

Return values

One	of DL_SPI_PARITY

§ DL_SPI_enableReceiveParity()

__STATIC_INLINE void DL_SPI_enableReceiveParity ( SPI_Regs * spi )

Enables receive parity.

This API only enables receive parity, it does not configure the parity mode used.

Parameters

[in] spi pointer to the register overlay for the peripheral

See also: DL_SPI_setParity

§ DL_SPI_disableReceiveParity()

__STATIC_INLINE void DL_SPI_disableReceiveParity ( SPI_Regs * spi )

Disables receive parity.

This API only disable receive parity, it does not configure the parity mode used.

Parameters

[in] spi pointer to the register overlay for the peripheral

See also: DL_SPI_setParity

§ DL_SPI_isReceiveParityEnabled()

__STATIC_INLINE bool DL_SPI_isReceiveParityEnabled ( SPI_Regs * spi )

Checks if receive parity is enabled.

Parameters

[in] spi pointer to the register overlay for the peripheral

Returns: If receive parity is enabled

Return values

true	Receive parity is enabled
false	Receive parity is disabled

§ DL_SPI_enableTransmitParity()

__STATIC_INLINE void DL_SPI_enableTransmitParity ( SPI_Regs * spi )

Enables transmit parity.

This API only enables transmit parity, it does not configure the parity mode used.

Parameters

[in] spi pointer to the register overlay for the peripheral

See also: DL_SPI_setParity

§ DL_SPI_disableTransmitParity()

__STATIC_INLINE void DL_SPI_disableTransmitParity ( SPI_Regs * spi )

Disables transmit parity.

This API only disables transmit parity, it does not configure the parity mode used.

Parameters

[in] spi pointer to the register overlay for the peripheral

See also: DL_SPI_setParity

§ DL_SPI_isTransmitParityEnabled()

__STATIC_INLINE bool DL_SPI_isTransmitParityEnabled ( SPI_Regs * spi )

Checks if transmit parity is enabled.

Parameters

[in] spi pointer to the register overlay for the peripheral

Returns: If transmit parity is enabled

Return values

true	Transmit parity is enabled
false	Transmit parity is disabled

§ DL_SPI_setFrameFormat()

__STATIC_INLINE void DL_SPI_setFrameFormat	(	SPI_Regs *	spi,
		DL_SPI_FRAME_FORMAT	frameFormat
	)

Set the frame format to use.

Configures the frame format to use for transactions. If you are using chip select you must use one of the Motorola 4 wire frame formats.

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[in]	frameFormat	Frame format to use. One of DL_SPI_FRAME_FORMAT.

See also: DL_SPI_init

References DL_Common_updateReg().

§ DL_SPI_getFrameFormat()

__STATIC_INLINE DL_SPI_FRAME_FORMAT DL_SPI_getFrameFormat ( SPI_Regs * spi )

Get the frame format configuration.

Parameters

[in] spi Pointer to the register overlay for the peripheral

Returns: The current frame format being used

Return values

One	of DL_SPI_FRAME_FORMAT

§ DL_SPI_setDataSize()

__STATIC_INLINE void DL_SPI_setDataSize	(	SPI_Regs *	spi,
		DL_SPI_DATA_SIZE	dataSize
	)

Set the size for transfers.

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[in]	dataSize	Number of bits used in a transfer. One of DL_SPI_DATA_SIZE

See also: DL_SPI_init

References DL_Common_updateReg().

§ DL_SPI_getDataSize()

__STATIC_INLINE DL_SPI_DATA_SIZE DL_SPI_getDataSize ( SPI_Regs * spi )

Get the configured size for transfers.

Parameters

[in] spi Pointer to the register overlay for the peripheral

Returns: The currently configured size for transfers

Return values

One	of DL_SPI_DATA_SIZE

§ DL_SPI_setMode()

__STATIC_INLINE void DL_SPI_setMode	(	SPI_Regs *	spi,
		DL_SPI_MODE	mode
	)

Set whether the device should be in controller/peripheral mode.

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[in]	mode	Mode to configure the SPI into. One of DL_SPI_MODE.

See also: DL_SPI_init

References DL_Common_updateReg().

§ DL_SPI_getMode()

__STATIC_INLINE DL_SPI_MODE DL_SPI_getMode ( SPI_Regs * spi )

Get the current mode for the SPI (controller/peripheral)

Parameters

[in] spi Pointer to the register overlay for the peripheral

Returns: The currently configured mode for the SPI (controller/peripheral)

Return values

One	of DL_SPI_MODE.

§ DL_SPI_setBitOrder()

__STATIC_INLINE void DL_SPI_setBitOrder	(	SPI_Regs *	spi,
		DL_SPI_BIT_ORDER	bitOrder
	)

Set the bit order used for transfers.

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[in]	bitOrder	Order for bits to be sent out during transfer. One of DL_SPI_BIT_ORDER.

See also: DL_SPI_init

References DL_Common_updateReg().

§ DL_SPI_getBitOrder()

__STATIC_INLINE DL_SPI_BIT_ORDER DL_SPI_getBitOrder ( SPI_Regs * spi )

Get the current bit order used for transfers.

Parameters

[in] spi Pointer to the register overlay for the peripheral

Returns: The currently configured bit order

Return values

One	of DL_SPI_BIT_ORDER.

§ DL_SPI_enableLoopbackMode()

__STATIC_INLINE void DL_SPI_enableLoopbackMode ( SPI_Regs * spi )

Enables loopback mode.

Enables the loopback mode. When enabled, the output of the transmit serial shifter is connected to the input of the receive serial shifter internally.

Parameters

[in] spi pointer to the register overlay for the peripheral

§ DL_SPI_disableLoopbackMode()

__STATIC_INLINE void DL_SPI_disableLoopbackMode ( SPI_Regs * spi )

Disables loopback mode.

Disables the loopback mode. When disabled, the transmit serial shifter and receive serial shifter are not connected internally.

Parameters

[in] spi pointer to the register overlay for the peripheral

§ DL_SPI_isLoopbackModeEnabled()

__STATIC_INLINE bool DL_SPI_isLoopbackModeEnabled ( SPI_Regs * spi )

Checks if the loopback mode is enabled.

Parameters

[in] spi pointer to the register overlay for the peripheral

Returns: The status of the loopback mode

Return values

true	if loopback mode is enabled
false	if loopback mode is disabled

§ DL_SPI_setRepeatTransmit()

__STATIC_INLINE void DL_SPI_setRepeatTransmit	(	SPI_Regs *	spi,
		uint32_t	numRepeats
	)

Set counter for repeated transmit.

Repeated transmit allows you to send the same data multiple times. This is essentially the same as writing the data into the transmit buffer repeatedly.

Parameters

[in]	spi	pointer to the register overlay for the peripheral
[in]	numRepeats	number of times to repeat the transfer. Should be a value between 0-255. 0 disables the repeated transfer 1-255 repeats that many times. So will be sent numRepeats + 1 times in total.

References DL_Common_updateReg().

§ DL_SPI_getRepeatTransmit()

__STATIC_INLINE uint32_t DL_SPI_getRepeatTransmit ( SPI_Regs * spi )

Get counter for repeated transmit.

Repeated transmit allows you to send the same data multiple times. This is essentially the same as writing the data into the transmit buffer repeatedly.

Parameters

[in] spi pointer to the register overlay for the peripheral

Returns: Number of repeats used for transfer

Return values

0	Repeated transfer is disabled
1-255	Repeat that many times.

§ DL_SPI_enablePeripheralAlignDataOnChipSelect()

__STATIC_INLINE void DL_SPI_enablePeripheralAlignDataOnChipSelect ( SPI_Regs * spi )

Enables data alignment on chip select for peripherals.

When enabled, the receieve bit counter is cleared automatically when the chip select gets set inactive. This helps the peripheral synchronize again to the controller in case of a disturbance or glitch on the clock line or during initialization.

This is only relevant when in peripheral mode.

Parameters

[in] spi pointer to the register overlay for the peripheral

§ DL_SPI_disablePeripheralAlignDataOnChipSelect()

__STATIC_INLINE void DL_SPI_disablePeripheralAlignDataOnChipSelect ( SPI_Regs * spi )

Disables data alignment on chip select for peripherals.

When disable, the receieve bit counter is not cleared automatically when the chip select gets set inactive.

This is only relevant when in peripheral mode.

Parameters

[in] spi pointer to the register overlay for the peripheral

§ DL_SPI_isPeripheralAlignDataOnChipSelectEnabled()

__STATIC_INLINE bool DL_SPI_isPeripheralAlignDataOnChipSelectEnabled ( SPI_Regs * spi )

Checks if data alignment on chip select for peripherals is enabled.

Parameters

[in] spi pointer to the register overlay for the peripheral

Returns: The status of data alignment on chip select

Return values

true	Data alignment on chip select is enabled
false	Data alignment on chip select is disabled

§ DL_SPI_enablePacking()

__STATIC_INLINE void DL_SPI_enablePacking ( SPI_Regs * spi )

Enables packing feature.

When enabled, two entries of the RX FIFO are returned as a 32-bit value. When reading the TX FIFO, if the last write to that field was a 32-bit write, those 32-bits will be returned. When writing to the TX FIFO, a 32-bit write will be written as one FIFO entry.

Parameters

[in] spi pointer to the register overlay for the peripheral

§ DL_SPI_disablePacking()

__STATIC_INLINE void DL_SPI_disablePacking ( SPI_Regs * spi )

Disables packing feature.

When disabled, 1 entry of the RX FIFO is returned as a 16-bit value. When reading the TX FIFO, if the last write to that field was a 16-bit write, those 16-bits wil be returned. When writing to the TX FIFO, a 32-bit write will be written as two FIFO entries.

Parameters

[in] spi pointer to the register overlay for the peripheral

§ DL_SPI_isPackingEnabled()

__STATIC_INLINE bool DL_SPI_isPackingEnabled ( SPI_Regs * spi )

Checks if packing feature is enabled.

Parameters

[in] spi pointer to the register overlay for the peripheral

Returns: If packing is enabled

Return values

true	Packing is enabled
false	Packing is disabled

§ DL_SPI_setChipSelect()

__STATIC_INLINE void DL_SPI_setChipSelect	(	SPI_Regs *	spi,
		DL_SPI_CHIP_SELECT	chipSelect
	)

Set chip select used for controller or peripheral mode.

Choose which chip select should be used for data transfer. User must ensure one of the 4-wire frame formats were selected using DL_SPI_init or DL_SPI_setFrameFormat.

This API is for both controller and peripheral modes, and the chip select can be changed in the application by calling this API.

Parameters

[in]	spi	pointer to the register overlay for the peripheral
[in]	chipSelect	the chip select pin to use. One of DL_SPI_CHIP_SELECT.

References DL_Common_updateReg().

§ DL_SPI_getChipSelect()

__STATIC_INLINE DL_SPI_CHIP_SELECT DL_SPI_getChipSelect ( SPI_Regs * spi )

Get chip select used for controller or peripheral mode.

This API is for both controller and peripheral modes.

Parameters

[in] spi pointer to the register overlay for the peripheral

Returns: The current chip selected used for data transfer

Return values

One	of DL_SPI_CHIP_SELECT.

§ DL_SPI_setPeripheralReceiveTimeout()

__STATIC_INLINE void DL_SPI_setPeripheralReceiveTimeout	(	SPI_Regs *	spi,
		uint32_t	timeout
	)

Set peripheral receive timeout.

Sets the number of clock cycles before a receive timeout occurs.

This is only relevant when in peripheral mode.

Parameters

[in]	spi	pointer to the register overlay for the peripheral
[in]	timeout	Number of clock cycles before a receive timeout occurs. Must be between 0-63. 0 Disables receive timeout 1-63 Number of clock cycles before timeout

References DL_Common_updateReg().

§ DL_SPI_getPeripheralReceiveTimeout()

__STATIC_INLINE uint32_t DL_SPI_getPeripheralReceiveTimeout ( SPI_Regs * spi )

Get peripheral receive timeout.

This is only relevant when in peripheral mode.

Parameters

[in] spi pointer to the register overlay for the peripheral

Returns: The current amount of cycles used for a peripheral timeout

Return values

0	indicating that receive timeout is disabled
1-63	number of clock cycles before a receive timeout occurs

§ DL_SPI_setControllerCommandDataModeConfig()

__STATIC_INLINE void DL_SPI_setControllerCommandDataModeConfig	(	SPI_Regs *	spi,
		uint32_t	config
	)

Configure the command/data mode.

Command/data mode allows the hardware to control the C/D pin to indicate whether the data being transferred is a command or just data. The C/D pin is low for commands and high for data.

You can use this API to manually set the C/D pin by passing in DL_SPI_CD_MODE_DATA or DL_SPI_CD_MODE_COMMAND. You can also have the C/D pin switch automatically by passing in how many bytes are part of the command transfer. The C/D pin will stay low until that many bytes are sent out and then automatically switch to high.

This is only relevant when in controller mode.

Parameters

[in]	spi	pointer to the register overlay for the peripheral
[in]	config	configuration for command/data mode. One of: DL_SPI_CD_MODE_DATA DL_SPI_CD_MODE_COMMAND A value between 1-14 to indicate how many bytes should be sent as command

References DL_Common_updateReg().

§ DL_SPI_getControllerCommandDataModeConfig()

__STATIC_INLINE uint32_t DL_SPI_getControllerCommandDataModeConfig ( SPI_Regs * spi )

Get the command/data mode configuration.

Returns the current configuration for command/data mode. When using the automatic C/D pin the value read back will be the number of command bytes remaining to be sent.

Parameters

[in] spi pointer to the register overlay for the peripheral

Returns: The current configuration for command/data mode

Return values

DL_SPI_CD_MODE_DATA	if in manual data mode
DL_SPI_CD_MODE_COMMAND	if in manual command mode
1-14	indicating how many command bytes still need to be sent

§ DL_SPI_enableControllerCommandDataMode()

__STATIC_INLINE void DL_SPI_enableControllerCommandDataMode ( SPI_Regs * spi )

Enables command/data mode.

When command/data mode is enabled, the C/D pin is used to differentiate between command and data during the transaction.

Parameters

[in] spi pointer to the register overlay for the peripheral

See also: DL_SPI_setControllerCommandDataModeConfig

§ DL_SPI_disableControllerCommandDataMode()

__STATIC_INLINE void DL_SPI_disableControllerCommandDataMode ( SPI_Regs * spi )

Disables command/data mode.

Parameters

[in] spi pointer to the register overlay for the peripheral

§ DL_SPI_isControllerCommandDataModeEnabled()

__STATIC_INLINE bool DL_SPI_isControllerCommandDataModeEnabled ( SPI_Regs * spi )

Checks if command/data mode is enabled.

Parameters

[in] spi pointer to the register overlay for the peripheral

Returns: The status of command/data mode

Return values

true	Command/data mode is enabled
false	Command/data mode is disabled

§ DL_SPI_enablePeripheralDataOutput()

__STATIC_INLINE void DL_SPI_enablePeripheralDataOutput ( SPI_Regs * spi )

Enables peripheral data output.

When peripheral data output is enabled, the peripheral can drive the POCI output pin. This will cause problems if all peripherals have their RXD lines tied together and the controller is trying to broadcast a message to all peripherals while ensuring only one peripheral drives data onto its serial output line.

Parameters

[in] spi pointer to the register overlay for the peripheral

§ DL_SPI_disablePeripheralDataOutput()

__STATIC_INLINE void DL_SPI_disablePeripheralDataOutput ( SPI_Regs * spi )

Disables peripheral data output.

When peripheral data output is disabled, the peripheral cannot drive the POCI output pin. This allows multiple peripherals that have their RXD lines tied together to receive a broadcasted message from a controller.

This is only relevant when in peripheral mode.

Parameters

[in] spi pointer to the register overlay for the peripheral

§ DL_SPI_isPeripheralDataOutputEnabled()

__STATIC_INLINE bool DL_SPI_isPeripheralDataOutputEnabled ( SPI_Regs * spi )

Checks if peripheral data output is enabled.

This is only relevant when in peripheral mode.

Parameters

[in] spi pointer to the register overlay for the peripheral

Returns: If peripheral data output is enabled

Return values

true	if peripheral data output is enabled
false	if peripheral data output is disabled

§ DL_SPI_setDelayedSampling()

__STATIC_INLINE void DL_SPI_setDelayedSampling	(	SPI_Regs *	spi,
		uint32_t	delay
	)

Set the delay sampling.

In controller mode only, the data on the input pin will be delayed sampled by the defined SPI clock cycles. The delay can be adjusted in steps of SPI input clock steps. The maximum allowed delay should not exceed the length of one data frame

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[in]	delay	The number of SPI clock cycles to delay sampling on input pin. Value between 0-15.

References DL_Common_updateReg().

§ DL_SPI_getDelayedSampling()

__STATIC_INLINE uint32_t DL_SPI_getDelayedSampling ( SPI_Regs * spi )

Get the delay sampling.

In controller mode only, the data on the input pin will be delayed sampled by the defined SPI clock cycles. The delay can be adjusted in steps of SPI input clock steps. The maximum allowed delay should not exceed the length of one data frame

Parameters

[in] spi Pointer to the register overlay for the peripheral

Returns: The amount of delay sampling on the input pin in SPI clock cycles.

Return values

0	- 15. The amount of delay sampling in SPI clock cycles.

§ DL_SPI_setFIFOThreshold()

__STATIC_INLINE void DL_SPI_setFIFOThreshold	(	SPI_Regs *	spi,
		DL_SPI_RX_FIFO_LEVEL	rxThreshold,
		DL_SPI_TX_FIFO_LEVEL	txThreshold
	)

Set the RX and TX FIFO interrupt threshold level.

Select the threshold for the receive and transmit FIFO interrupts. The interrupts are generated based on a transition through a level rather than being based on the level. That is, the interrupts are generated when the fill level progresses through the trigger level.

For example, if the trigger level is set to the half-way mark, the interrupt is triggered when the FIFO becomes half empty/full.

Out of reset, the FIFOs are triggered to interrupt at half-way mark.

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[in]	rxThreshold	One of DL_SPI_RX_FIFO_LEVEL
[in]	txThreshold	One of DL_SPI_TX_FIFO_LEVEL

References DL_Common_updateReg().

§ DL_SPI_getTXFIFOThreshold()

__STATIC_INLINE DL_SPI_TX_FIFO_LEVEL DL_SPI_getTXFIFOThreshold ( SPI_Regs * spi )

Get the TX FIFO interrupt threshold level.

Parameters

[in] spi Pointer to the register overlay for the peripheral

Returns: The TX FIFO interrupt threshold level

Return values

One	of DL_SPI_TX_FIFO_LEVEL

§ DL_SPI_getRXFIFOThreshold()

__STATIC_INLINE DL_SPI_RX_FIFO_LEVEL DL_SPI_getRXFIFOThreshold ( SPI_Regs * spi )

Get the RX FIFO interrupt threshold level.

Parameters

[in] spi Pointer to the register overlay for the peripheral

Returns: The RX FIFO interrupt threshold level

Return values

One	of DL_SPI_RX_FIFO_LEVEL

§ DL_SPI_setBitRateSerialClockDivider()

__STATIC_INLINE void DL_SPI_setBitRateSerialClockDivider	(	SPI_Regs *	spi,
		uint32_t	SCR
	)

Set the SPI bit rate serial clock divider (SCR)

The SPI includes a programmable bit rate clock divider and prescaler to generate the serial output clock. The bit rates are supported up to FUNCCLK/2. The functional clock selection depends on the specific device, please refer to the device datasheet and PMU/Clock section.

The SPI output bit rate is calculated with the following formula: SPI bit rate = (SPI functional clock) / ((1 + SCR)*2) Given this formula, the SCR can be calculated: SCR = (SPI functional clock) / ((2 * SPI bit rate) - 1)

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[in]	SCR	The SPI serial clock divider. Value between 0-1023.

References DL_Common_updateReg().

§ DL_SPI_getBitRateSerialClockDivider()

__STATIC_INLINE uint32_t DL_SPI_getBitRateSerialClockDivider ( SPI_Regs * spi )

Get the SPI bit rate serial clock divider (SCR)

Parameters

[in] spi Pointer to the register overlay for the peripheral

Returns: The current bit rate serial clock divider

Return values

The	SPI SCR. Value from 0-1023

§ DL_SPI_transmitData8()

__STATIC_INLINE void DL_SPI_transmitData8	(	SPI_Regs *	spi,
		uint8_t	data
	)

Writes 8-bit data into the TX FIFO for transmit.

Puts the data into the TX FIFO without checking its status. Use if already sure the TX FIFO has space for the write. See related APIs for additional transmit options.

Can be used for any data transfers that are less than or equal to 8 bits.

Parameters

[in]	spi	pointer to the register overlay for the peripheral
[in]	data	data to send

See also: DL_SPI_transmitDataBlocking8; DL_SPI_transmitDataCheck8

§ DL_SPI_transmitData16()

__STATIC_INLINE void DL_SPI_transmitData16	(	SPI_Regs *	spi,
		uint16_t	data
	)

Writes 16-bit data into the TX FIFO for transmit.

Puts the data into the TX FIFO without checking its status. Use if already sure the TX FIFO has space for the write. See related APIs for additional transmit options.

Can be used for any data transfers that are less than or equal to 16 bits.

Parameters

[in]	spi	pointer to the register overlay for the peripheral
[in]	data	data to send

See also: DL_SPI_transmitDataBlocking16; DL_SPI_transmitDataCheck16

§ DL_SPI_transmitData32()

__STATIC_INLINE void DL_SPI_transmitData32	(	SPI_Regs *	spi,
		uint32_t	data
	)

Writes 32-bit data into the TX FIFO for transmit.

Puts the data into the TX FIFO without checking its status. Use if already sure the TX FIFO has space for the write. See related APIs for additional transmit options.

Can be used for any data transfers that are less than or equal to 32 bits.

NOTE: If packing is enabled by calling DL_SPI_enablePacking prior to calling this API, then a 32-bit write will be written as one FIFO entry. If packing is disabled, then a 32-bit write will be written as two FIFO entries.

Parameters

[in]	spi	pointer to the register overlay for the peripheral
[in]	data	data to send

See also: DL_SPI_enablePacking; DL_SPI_transmitDataBlocking32; DL_SPI_transmitDataCheck32

§ DL_SPI_receiveData8()

__STATIC_INLINE uint8_t DL_SPI_receiveData8 ( SPI_Regs * spi )

Reads 8-bit data from the RX FIFO.

Reads the data from the RX FIFO without checking its status. Use if already sure the RX FIFO has data available. See related APIs for additional receive options.

Can be used for any data transfers that are less than or equal to 8 bits.

Parameters

[in] spi pointer to the register overlay for the peripheral

Returns: The data in the RX FIFO

See also: DL_SPI_receiveDataBlocking8; DL_SPI_receiveDataCheck8

§ DL_SPI_receiveData16()

__STATIC_INLINE uint16_t DL_SPI_receiveData16 ( SPI_Regs * spi )

Reads 16-bit data from the RX FIFO.

Reads the data from the RX FIFO without checking its status. Use if already sure the RX FIFO has data available. See related APIs for additional receive options.

Can be used for any data transfers that are less than or equal to 16 bits.

Parameters

[in] spi pointer to the register overlay for the peripheral

Returns: The data in the RX FIFO

See also: DL_SPI_receiveDataBlocking16; DL_SPI_receiveDataCheck16

§ DL_SPI_receiveData32()

__STATIC_INLINE uint32_t DL_SPI_receiveData32 ( SPI_Regs * spi )

Reads 32-bit data from the RX FIFO.

Reads the data from the RX FIFO without checking its status. Use if already sure the RX FIFO has data available. See related APIs for additional receive options.

Can be used for any data transfers that are less than or equal to 32 bits.

NOTE: Requires that packing has been enabled by calling DL_SPI_enablePacking prior to calling this API. When packing is enabled, two entries of the RX FIFO are returned as a 32-bit value.

Parameters

[in] spi pointer to the register overlay for the peripheral

Returns: The data in the RX FIFO

Precondition: DL_SPI_enablePacking

See also: DL_SPI_receiveDataBlocking32; DL_SPI_receiveDataCheck32

§ DL_SPI_enableInterrupt()

__STATIC_INLINE void DL_SPI_enableInterrupt	(	SPI_Regs *	spi,
		uint32_t	interruptMask
	)

Enable SPI interrupts.

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[in]	interruptMask	Bit mask of interrupts to enable. Bitwise OR of DL_SPI_INTERRUPT.

§ DL_SPI_disableInterrupt()

__STATIC_INLINE void DL_SPI_disableInterrupt	(	SPI_Regs *	spi,
		uint32_t	interruptMask
	)

Disable SPI interrupts.

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[in]	interruptMask	Bit mask of interrupts to disable. Bitwise OR of DL_SPI_INTERRUPT.

§ DL_SPI_getEnabledInterrupts()

__STATIC_INLINE uint32_t DL_SPI_getEnabledInterrupts	(	SPI_Regs *	spi,
		uint32_t	interruptMask
	)

Check which SPI interrupts are enabled.

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[in]	interruptMask	Bit mask of interrupts to check. Bitwise OR of DL_SPI_INTERRUPT.

Returns: Which of the requested SPI interrupts are enabled

Return values

Bitwise OR of DL_SPI_INTERRUPT values

§ DL_SPI_getEnabledInterruptStatus()

__STATIC_INLINE uint32_t DL_SPI_getEnabledInterruptStatus	(	SPI_Regs *	spi,
		uint32_t	interruptMask
	)

Check interrupt flag of enabled SPI interrupts.

Checks if any of the SPI interrupts that were previously enabled are pending.

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[in]	interruptMask	Bit mask of interrupts to check. Bitwise OR of DL_SPI_INTERRUPT.

Returns: Which of the requested SPI interrupts are pending

Return values

Bitwise OR of DL_SPI_INTERRUPT values

See also: DL_SPI_enableInterrupt

§ DL_SPI_getRawInterruptStatus()

__STATIC_INLINE uint32_t DL_SPI_getRawInterruptStatus	(	SPI_Regs *	spi,
		uint32_t	interruptMask
	)

Check interrupt flag of any SPI interrupt.

Checks if any of the SPI interrupts are pending. Interrupts do not have to be previously enabled.

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[in]	interruptMask	Bit mask of interrupts to check. Bitwise OR of DL_SPI_INTERRUPT.

Returns: Which of the requested SPI interrupts are pending

Return values

Bitwise OR of DL_SPI_INTERRUPT values

§ DL_SPI_getPendingInterrupt()

__STATIC_INLINE DL_SPI_IIDX DL_SPI_getPendingInterrupt ( SPI_Regs * spi )

Get highest priority pending SPI interrupt.

Checks if any of the SPI interrupts are pending. Interrupts do not have to be previously enabled.

Parameters

[in] spi Pointer to the register overlay for the peripheral

Returns: The highest priority pending SPI interrupt. One of DL_SPI_IIDX

§ DL_SPI_clearInterruptStatus()

__STATIC_INLINE void DL_SPI_clearInterruptStatus	(	SPI_Regs *	spi,
		uint32_t	interruptMask
	)

Clear pending SPI interrupts.

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[in]	interruptMask	Bit mask of interrupts to clear. Bitwise OR of DL_SPI_INTERRUPT.

References DL_SPI_drainRXFIFO16(), DL_SPI_drainRXFIFO32(), DL_SPI_drainRXFIFO8(), DL_SPI_fillTXFIFO16(), DL_SPI_fillTXFIFO32(), DL_SPI_fillTXFIFO8(), DL_SPI_receiveDataBlocking16(), DL_SPI_receiveDataBlocking32(), DL_SPI_receiveDataBlocking8(), DL_SPI_receiveDataCheck16(), DL_SPI_receiveDataCheck32(), DL_SPI_receiveDataCheck8(), DL_SPI_transmitDataBlocking16(), DL_SPI_transmitDataBlocking32(), DL_SPI_transmitDataBlocking8(), DL_SPI_transmitDataCheck16(), DL_SPI_transmitDataCheck32(), and DL_SPI_transmitDataCheck8().

§ DL_SPI_transmitDataBlocking8()

void DL_SPI_transmitDataBlocking8	(	SPI_Regs *	spi,
		uint8_t	data
	)

Blocks to ensure transmit is ready before sending data.

Puts the data into the TX FIFO after blocking to ensure the TX FIFO is not full. Will wait indefinitely until there is space in the TX FIFO. See related APIs for additional transmit options.

Can be used for any data transfers that are less than or equal to 8 bits.

Parameters

[in]	spi	pointer to the register overlay for the peripheral
[in]	data	data to send

See also: DL_SPI_transmitData8; DL_SPI_transmitDataCheck8

Referenced by DL_SPI_clearInterruptStatus().

§ DL_SPI_transmitDataBlocking16()

void DL_SPI_transmitDataBlocking16	(	SPI_Regs *	spi,
		uint16_t	data
	)

Blocks to ensure transmit is ready before sending data.

Puts the data into the TX FIFO after blocking to ensure the TX FIFO is not full. Will wait indefinitely until there is space in the TX FIFO. See related APIs for additional transmit options.

Can be used for any data transfers that are less than or equal to 16 bits.

Parameters

[in]	spi	pointer to the register overlay for the peripheral
[in]	data	data to send

See also: DL_SPI_transmitData16; DL_SPI_transmitDataCheck16

Referenced by DL_SPI_clearInterruptStatus().

§ DL_SPI_transmitDataBlocking32()

void DL_SPI_transmitDataBlocking32	(	SPI_Regs *	spi,
		uint32_t	data
	)

Blocks to ensure transmit is ready before sending data.

Puts the data into the TX FIFO after blocking to ensure the TX FIFO is not full. Will wait indefinitely until there is space in the TX FIFO. See related APIs for additional transmit options.

Can be used for any data transfers that are less than or equal to 32 bits.

NOTE: If packing is enabled by calling DL_SPI_enablePacking prior to calling this API, then a 32-bit write will be written as one FIFO entry. If packing is disabled, then a 32-bit write will be written as two FIFO entries.

Parameters

[in]	spi	pointer to the register overlay for the peripheral
[in]	data	data to send

See also: DL_SPI_enablePacking; DL_SPI_transmitData32; DL_SPI_transmitDataCheck32

Referenced by DL_SPI_clearInterruptStatus().

§ DL_SPI_receiveDataBlocking8()

uint8_t DL_SPI_receiveDataBlocking8 ( SPI_Regs * spi )

Blocks to ensure receive is ready before reading data.

Reads the data from the RX FIFO after blocking to ensure the RX FIFO is not empty. Will wait indefinitely until there is data in the RX FIFO. See related APIs for additional receive options.

Can be used for any data transfers that are less than or equal to 8 bits.

Parameters

[in] spi pointer to the register overlay for the peripheral

Returns: The data in the RX FIFO

See also: DL_SPI_transmitData8; DL_SPI_transmitDataCheck8

Referenced by DL_SPI_clearInterruptStatus().

§ DL_SPI_receiveDataBlocking16()

uint16_t DL_SPI_receiveDataBlocking16 ( SPI_Regs * spi )

Blocks to ensure receive is ready before reading data.

Reads the data from the RX FIFO after blocking to ensure the RX FIFO is not empty. Will wait indefinitely until there is data in the RX FIFO. See related APIs for additional receive options.

Can be used for any data transfers that are less than or equal to 16 bits.

Parameters

[in] spi pointer to the register overlay for the peripheral

Returns: The data in the RX FIFO

See also: DL_SPI_transmitData16; DL_SPI_transmitDataCheck16

Referenced by DL_SPI_clearInterruptStatus().

§ DL_SPI_receiveDataBlocking32()

uint32_t DL_SPI_receiveDataBlocking32 ( SPI_Regs * spi )

Blocks to ensure receive is ready before reading data.

Reads the data from the RX FIFO after blocking to ensure the RX FIFO is not empty. Will wait indefinitely until there is data in the RX FIFO. See related APIs for additional receive options.

Can be used for any data transfers that are less than or equal to 32 bits.

NOTE: Requires that packing has been enabled by calling DL_SPI_enablePacking prior to calling this API. When packing is enabled, two entries of the RX FIFO are returned as a 32-bit value.

Parameters

[in] spi pointer to the register overlay for the peripheral

Returns: The data in the RX FIFO

Precondition: DL_SPI_enablePacking

See also: DL_SPI_transmitData32; DL_SPI_transmitDataCheck32

Referenced by DL_SPI_clearInterruptStatus().

§ DL_SPI_transmitDataCheck8()

bool DL_SPI_transmitDataCheck8	(	SPI_Regs *	spi,
		uint8_t	data
	)

Checks the TX FIFO before trying to transmit data.

Checks if the TX FIFO is already full before trying to add new data to the FIFO. Exits immediately if full rather than trying to block. See related APIs for additional transmit options.

Can be used for any data transfers that are less than or equal to 8 bits.

Parameters

[in]	spi	pointer to the register overlay for the peripheral
[in]	data	data to send

Returns: If the transmit occurred

Return values

true	if data was added to the TX FIFO
false	if the TX FIFO was full and data was not added

See also: DL_SPI_transmitData8; DL_SPI_transmitDataBlocking8

Referenced by DL_SPI_clearInterruptStatus().

§ DL_SPI_transmitDataCheck16()

bool DL_SPI_transmitDataCheck16	(	SPI_Regs *	spi,
		uint16_t	data
	)

Checks the TX FIFO before trying to transmit data.

Checks if the TX FIFO is already full before trying to add new data to the FIFO. Exits immediately if full rather than trying to block. See related APIs for additional transmit options.

Can be used for any data transfers that are less than or equal to 16 bits.

Parameters

[in]	spi	pointer to the register overlay for the peripheral
[in]	data	data to send

Returns: If the transmit occurred

Return values

true	if data was added to the TX FIFO
false	if the TX FIFO was full and data was not added

See also: DL_SPI_transmitData16; DL_SPI_transmitDataBlocking16

Referenced by DL_SPI_clearInterruptStatus().

§ DL_SPI_transmitDataCheck32()

bool DL_SPI_transmitDataCheck32	(	SPI_Regs *	spi,
		uint32_t	data
	)

Checks the TX FIFO before trying to transmit data.

Checks if the TX FIFO is already full before trying to add new data to the FIFO. Exits immediately if full rather than trying to block. See related APIs for additional transmit options.

Can be used for any data transfers that are less than or equal to 32 bits.

NOTE: If packing is enabled by calling DL_SPI_enablePacking prior to calling this API, then a 32-bit write will be written as one FIFO entry. If packing is disabled, then a 32-bit write will be written as two FIFO entries.

Parameters

[in]	spi	pointer to the register overlay for the peripheral
[in]	data	data to send

Returns: If the transmit occurred

Return values

true	if data was added to the TX FIFO
false	if the TX FIFO was full and data was not added

See also: DL_SPI_enablePacking; DL_SPI_transmitData32; DL_SPI_transmitDataBlocking32

Referenced by DL_SPI_clearInterruptStatus().

§ DL_SPI_receiveDataCheck8()

bool DL_SPI_receiveDataCheck8	(	SPI_Regs *	spi,
		uint8_t *	buffer
	)

Checks the RX FIFO before trying to transmit data.

Checks if the RX FIFO is already empty before trying to read new data from the FIFO. Exits immediately if empty rather than trying to block. See related APIs for additional receive options.

Can be used for any data transfers that are less than or equal to 8 bits.

Parameters

[in]	spi	pointer to the register overlay for the peripheral
[in]	buffer	a buffer to write the received data into

Returns: If the receive occurred

Return values

true	if data was read from the RX FIFO
false	if the RX FIFO was empty and data was not read

See also: DL_SPI_receiveData8; DL_SPI_receiveDataBlocking8

Referenced by DL_SPI_clearInterruptStatus().

§ DL_SPI_receiveDataCheck16()

bool DL_SPI_receiveDataCheck16	(	SPI_Regs *	spi,
		uint16_t *	buffer
	)

Checks the RX FIFO before trying to transmit data.

Checks if the RX FIFO is already empty before trying to read new data from the FIFO. Exits immediately if empty rather than trying to block. See related APIs for additional receive options.

Can be used for any data transfers that are less than or equal to 16 bits.

Parameters

[in]	spi	pointer to the register overlay for the peripheral
[in]	buffer	a buffer to write the received data into

Returns: If the receive occurred

Return values

true	if data was read from the RX FIFO
false	if the RX FIFO was empty and data was not read

See also: DL_SPI_receiveData16; DL_SPI_receiveDataBlocking16

Referenced by DL_SPI_clearInterruptStatus().

§ DL_SPI_receiveDataCheck32()

bool DL_SPI_receiveDataCheck32	(	SPI_Regs *	spi,
		uint32_t *	buffer
	)

Checks the RX FIFO before trying to transmit data.

Checks if the RX FIFO is already empty before trying to read new data from the FIFO. Exits immediately if empty rather than trying to block. See related APIs for additional receive options.

Can be used for any data transfers that are less than or equal to 32 bits.

NOTE: Requires that packing has been enabled by calling DL_SPI_enablePacking prior to calling this API. When packing is enabled, two entries of the RX FIFO are returned as a 32-bit value.

Parameters

[in]	spi	pointer to the register overlay for the peripheral
[in]	buffer	a buffer to write the received data into

Returns: If the receive occurred

Return values

true	if data was read from the RX FIFO
false	if the RX FIFO was empty and data was not read

Precondition: DL_SPI_enablePacking

See also: DL_SPI_receiveData32; DL_SPI_receiveDataBlocking32

Referenced by DL_SPI_clearInterruptStatus().

§ DL_SPI_drainRXFIFO8()

uint32_t DL_SPI_drainRXFIFO8	(	SPI_Regs *	spi,
		uint8_t *	buffer,
		uint32_t	maxCount
	)

Read all available data out of the RX FIFO using 8 bit access.

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[out]	buffer	Buffer to write received data into
[in]	maxCount	Max number of bytes to read from the RX FIFO

Returns: Number of bytes read from the RX FIFO

Referenced by DL_SPI_clearInterruptStatus().

§ DL_SPI_drainRXFIFO16()

uint32_t DL_SPI_drainRXFIFO16	(	SPI_Regs *	spi,
		uint16_t *	buffer,
		uint32_t	maxCount
	)

Read all available data out of the RX FIFO using 16 bit access.

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[out]	buffer	Buffer to write received data into
[in]	maxCount	Max number of halfwords to read from the RX FIFO

Returns: Number of halfwords read from the RX FIFO

Referenced by DL_SPI_clearInterruptStatus().

§ DL_SPI_drainRXFIFO32()

uint32_t DL_SPI_drainRXFIFO32	(	SPI_Regs *	spi,
		uint32_t *	buffer,
		uint32_t	maxCount
	)

Read all available data out of the RX FIFO using 32 bit access.

NOTE: Requires that packing has been enabled by calling DL_SPI_enablePacking prior to calling this API. When packing is enabled, two entries of the RX FIFO are returned as a 32-bit value.

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[out]	buffer	Buffer to write received data into
[in]	maxCount	Max number of words to read from the RX FIFO

Returns: Number of words read from the RX FIFO

Precondition: DL_SPI_enablePacking

Referenced by DL_SPI_clearInterruptStatus().

§ DL_SPI_fillTXFIFO8()

uint32_t DL_SPI_fillTXFIFO8	(	SPI_Regs *	spi,
		uint8_t *	buffer,
		uint32_t	count
	)

Fill the TX FIFO using 8 bit access.

Continuously write data into the TX FIFO until it is filled up or count has been reached.

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[in]	buffer	Buffer of data to write to the TX FIFO
[in]	count	Max number of bytes to write to the TX FIFO

Returns: Number of bytes written to the TX FIFO

Referenced by DL_SPI_clearInterruptStatus().

§ DL_SPI_fillTXFIFO16()

uint32_t DL_SPI_fillTXFIFO16	(	SPI_Regs *	spi,
		uint16_t *	buffer,
		uint32_t	count
	)

Fill the TX FIFO using 16 bit access.

Continuously write data into the TX FIFO until it is filled up or count has been reached.

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[in]	buffer	Buffer of data to write to the TX FIFO
[in]	count	Max number of halfwords to write to the TX FIFO

Returns: Number of halfwords written to the TX FIFO

Referenced by DL_SPI_clearInterruptStatus().

§ DL_SPI_fillTXFIFO32()

uint32_t DL_SPI_fillTXFIFO32	(	SPI_Regs *	spi,
		uint32_t *	buffer,
		uint32_t	count
	)

Fill the TX FIFO using 32 bit access.

Continuously write data into the TX FIFO until it is filled up or count has been reached.

NOTE: If packing is enabled by calling DL_SPI_enablePacking prior to calling this API, then a 32-bit write will be written as one FIFO entry. If packing is disabled, then a 32-bit write will be written as two FIFO entries.

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[in]	buffer	Buffer of data to write to the TX FIFO
[in]	count	Max number of words to write to the TX FIFO

Returns: Number of words written to the TX FIFO

See also: DL_SPI_enablePacking

Referenced by DL_SPI_clearInterruptStatus().

§ DL_SPI_enableDMAReceiveEvent()

__STATIC_INLINE void DL_SPI_enableDMAReceiveEvent	(	SPI_Regs *	spi,
		uint32_t	interrupt
	)

Enable SPI interrupt for triggering the DMA receive event.

Enables the SPI interrupt to be used as the condition to generate an event to directly trigger the DMA. This API configures the DMA_TRIG_RX register, which is the event publisher used for triggering the DMA to do a receive data transfer.

Note: Only one interrupt source should be enabled at a time.

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[in]	interrupt	Interrupt to enable as the trigger condition for the DMA. One of DL_SPI_DMA_INTERRUPT_RX.

§ DL_SPI_enableDMATransmitEvent()

__STATIC_INLINE void DL_SPI_enableDMATransmitEvent ( SPI_Regs * spi )

Enable SPI interrupt for triggering the DMA transmit event.

Enables the SPI interrupt to be used as the condition to generate an event to directly trigger the DMA. This API configures the DMA_TRIG_TX register, which is the event publisher used for triggering the DMA to do a transmit data transfer.

Note: DMA_TRIG_TX only has one transmit interrupt source

Parameters

[in] spi Pointer to the register overlay for the peripheral

§ DL_SPI_disableDMAReceiveEvent()

__STATIC_INLINE void DL_SPI_disableDMAReceiveEvent	(	SPI_Regs *	spi,
		uint32_t	interrupt
	)

Disables SPI interrupt from triggering the DMA receive event.

Disables the SPI interrupt as the condition to generate an event to directly trigger the DMA. This API configures the DMA_TRIG_RX register, which is the event publisher used for triggering the DMA to do a receive data transfer.

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[in]	interrupt	Interrupt to disable as the trigger condition for the DMA. One of DL_SPI_DMA_INTERRUPT_RX.

§ DL_SPI_disableDMATransmitEvent()

__STATIC_INLINE void DL_SPI_disableDMATransmitEvent ( SPI_Regs * spi )

Disables SPI interrupt from triggering the DMA transmit event.

Disables the SPI interrupt as the condition to generate an event to directly trigger the DMA. This API configures the DMA_TRIG_TX register, which is the event publisher used for triggering the DMA to do a transmit data transfer.

Note: DMA_TRIG_TX only has one transmit interrupt source

Parameters

[in] spi Pointer to the register overlay for the peripheral

§ DL_SPI_getEnabledDMAReceiveEvent()

__STATIC_INLINE uint32_t DL_SPI_getEnabledDMAReceiveEvent	(	SPI_Regs *	spi,
		uint32_t	interruptMask
	)

Check which SPI interrupt for DMA receive events is enabled.

This API checks the DMA_TRIG_RX register, which is the event publisher used for triggering the DMA to do a receive data transfer.

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[in]	interruptMask	Bit mask of interrupts to check. Bitwise OR of DL_SPI_DMA_INTERRUPT_RX.

Note: Only one interrupt source should be enabled at a time.

Returns: Which of the requested SPI interrupts is enabled

Return values

One	of DL_SPI_DMA_INTERRUPT_RX

§ DL_SPI_getEnabledDMATransmitEvent()

__STATIC_INLINE uint32_t DL_SPI_getEnabledDMATransmitEvent ( SPI_Regs * spi )

Check if SPI interrupt for DMA transmit event is enabled.

This API checks the DMA_TRIG_TX register, which is the event publisher used for triggering the DMA to do a transmit data transfer.

Parameters

[in] spi Pointer to the register overlay for the peripheral

Returns: The requested SPI interrupt status

Return values

DL_SPI_DMA_INTERRUPT_TX if enabled, 0 if not enabled

§ DL_SPI_getEnabledDMAReceiveEventStatus()

__STATIC_INLINE uint32_t DL_SPI_getEnabledDMAReceiveEventStatus	(	SPI_Regs *	spi,
		uint32_t	interruptMask
	)

Check interrupt flag of enabled SPI interrupt for DMA receive event.

Checks if any of the SPI interrupts for the DMA receive event that were previously enabled are pending. This API checks the DMA_TRIG_RX register, which is the event publisher used for triggering the DMA to do a receive data transfer.

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[in]	interruptMask	Bit mask of interrupts to check. Bitwise OR of DL_SPI_DMA_INTERRUPT_RX.

Note: Only one interrupt source should be enabled at a time.

Returns: The requested SPI interrupt status

Return values

One	of DL_SPI_DMA_INTERRUPT_RX

See also: DL_SPI_enableDMAReceiveEvent

§ DL_SPI_getEnabledDMATransmitEventStatus()

__STATIC_INLINE uint32_t DL_SPI_getEnabledDMATransmitEventStatus ( SPI_Regs * spi )

Check interrupt flag of enabled SPI interrupt for DMA transmit event.

Checks if the SPI interrupt for the DMA transmit event that was previously enabled is pending. This API checks the DMA_TRIG_TX register, which is the event publisher used for triggering the DMA to do a transmit data transfer.

Parameters

[in] spi Pointer to the register overlay for the peripheral

Returns: The requested SPI interrupt status

Return values

DL_SPI_DMA_INTERRUPT_TX if enabled, 0 if not enabled

See also: DL_SPI_enableDMATransmitEvent

§ DL_SPI_getRawDMAReceiveEventStatus()

__STATIC_INLINE uint32_t DL_SPI_getRawDMAReceiveEventStatus	(	SPI_Regs *	spi,
		uint32_t	interruptMask
	)

Check interrupt flag of any SPI interrupt for DMA receive event.

Checks if any of the SPI interrupts for DMA receive event are pending. Interrupts do not have to be previously enabled. This API checks the DMA_TRIG_RX register, which is the event publisher used for triggering the DMA to do a receive data transfer.

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[in]	interruptMask	Bit mask of interrupts to check. Bitwise OR of DL_SPI_DMA_INTERRUPT_RX.

Returns: Which of the requested SPI interrupts are pending

Return values

Bitwise OR of DL_SPI_DMA_INTERRUPT_RX values

§ DL_SPI_getRawDMATransmitEventStatus()

__STATIC_INLINE uint32_t DL_SPI_getRawDMATransmitEventStatus ( SPI_Regs * spi )

Check interrupt flag of any SPI interrupt for DMA transmit event.

Checks if any of the SPI interrupts for DMA transmit event are pending. Interrupts do not have to be previously enabled. This API checks the DMA_TRIG_TX register, which is the event publisher used for triggering the DMA to do a transmit data transfer.

Parameters

[in] spi Pointer to the register overlay for the peripheral

Returns: The requested SPI interrupt status

Return values

DL_SPI_DMA_INTERRUPT_TX if enabled, 0 if not enabled

§ DL_SPI_getPendingDMAReceiveEvent()

__STATIC_INLINE DL_SPI_DMA_IIDX_RX DL_SPI_getPendingDMAReceiveEvent ( SPI_Regs * spi )

Get highest priority pending SPI interrupt for DMA receive event.

Checks if any of the SPI interrupts for DMA receive event are pending. Interrupts do not have to be previously enabled. This API checks the DMA_TRIG_RX register, which is the event publisher used for triggering the DMA to do a receive data transfer.

Parameters

[in] spi Pointer to the register overlay for the peripheral

Returns: The highest priority pending SPI interrupt

Return values

One	of DL_SPI_DMA_IIDX_RX

§ DL_SPI_getPendingDMATransmitEvent()

__STATIC_INLINE DL_SPI_DMA_IIDX_TX DL_SPI_getPendingDMATransmitEvent ( SPI_Regs * spi )

Get highest priority pending SPI interrupt for DMA transmit event.

Checks if the SPI interrupt for DMA transmit event is pending. Interrupts do not have to be previously enabled. This API checks the DMA_TRIG_TX register, which is the event publisher used for triggering the DMA to do a transmit data transfer.

Parameters

[in] spi Pointer to the register overlay for the peripheral

Returns: The highest priority pending SPI interrupt

Return values

DL_SPI_DMA_IIDX_TX if pending, 0 if not pending

§ DL_SPI_clearDMAReceiveEventStatus()

__STATIC_INLINE void DL_SPI_clearDMAReceiveEventStatus	(	SPI_Regs *	spi,
		uint32_t	interruptMask
	)

Clear pending SPI interrupts for DMA receive event.

This API checks the DMA_TRIG_RX register, which is the event publisher used for triggering the DMA to do a receive data transfer.

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[in]	interruptMask	Bit mask of interrupts to clear. Bitwise OR of DL_SPI_DMA_INTERRUPT_RX.

§ DL_SPI_clearDMATransmitEventStatus()

__STATIC_INLINE void DL_SPI_clearDMATransmitEventStatus ( SPI_Regs * spi )

Clear pending SPI interrupt for DMA transmit event.

This API checks the DMA_TRIG_TX register, which is the event publisher used for triggering the DMA to do a transmit data transfer.

Parameters

[in] spi Pointer to the register overlay for the peripheral

Note: DMA_TRIG_TX only has one transmit interrupt source

References DL_SPI_restoreConfiguration(), and DL_SPI_saveConfiguration().

§ DL_SPI_saveConfiguration()

bool DL_SPI_saveConfiguration	(	SPI_Regs *	spi,
		DL_SPI_backupConfig *	ptr
	)

Save SPI configuration before entering a power loss state.

Some MSPM0G peripherals residing in PD1 domain do not retain register contents when entering STOP or STANDBY modes. Please refer to the datasheet for the full list of peripheral instances that exhibit this behavior.

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[in]	ptr	Configuration backup setup structure. See DL_SPI_backupConfig.

Return values

FALSE if a configuration already exists in ptr (will not be overwritten). TRUE if a configuration was successfully saved

See also: DL_SPI_restoreConfiguration

Referenced by DL_SPI_clearDMATransmitEventStatus().

§ DL_SPI_restoreConfiguration()

bool DL_SPI_restoreConfiguration	(	SPI_Regs *	spi,
		DL_SPI_backupConfig *	ptr
	)

Restore SPI configuration after leaving a power loss state.

Some MSPM0G peripherals residing in PD1 domain do not retain register contents when entering STOP or STANDBY modes. Please refer to the datasheet for the full list of peripheral instances that exhibit this behavior.

Parameters

[in]	spi	Pointer to the register overlay for the peripheral
[in]	ptr	Configuration backup setup structure. See DL_SPI_backupConfig.

Return values

FALSE if a configuration does not exist in ptr (will not be loaded). TRUE if a configuration successfully loaded

See also: DL_SPI_saveConfiguration

Referenced by DL_SPI_clearDMATransmitEventStatus().

Modules

Data Structures

Macros

Enumerations

Functions

Detailed Description

Overview

Enumeration Type Documentation

§ DL_SPI_DMA_IIDX_RX

§ DL_SPI_DMA_IIDX_TX

§ DL_SPI_PARITY

§ DL_SPI_FRAME_FORMAT

§ DL_SPI_MODE

§ DL_SPI_BIT_ORDER

§ DL_SPI_DATA_SIZE

§ DL_SPI_CHIP_SELECT

§ DL_SPI_TX_FIFO_LEVEL

§ DL_SPI_RX_FIFO_LEVEL

§ DL_SPI_IIDX

§ DL_SPI_CLOCK_DIVIDE_RATIO

§ DL_SPI_CLOCK

Function Documentation

§ DL_SPI_init()

§ DL_SPI_enablePower()

§ DL_SPI_disablePower()

§ DL_SPI_isPowerEnabled()

§ DL_SPI_reset()

§ DL_SPI_isReset()

§ DL_SPI_enable()

§ DL_SPI_isEnabled()

§ DL_SPI_disable()

§ DL_SPI_setClockConfig()

§ DL_SPI_getClockConfig()

§ DL_SPI_isBusy()

§ DL_SPI_isTXFIFOEmpty()

§ DL_SPI_isTXFIFOFull()

§ DL_SPI_isRXFIFOEmpty()

§ DL_SPI_isRXFIFOFull()

§ DL_SPI_setParity()

§ DL_SPI_getParity()

§ DL_SPI_enableReceiveParity()

§ DL_SPI_disableReceiveParity()

§ DL_SPI_isReceiveParityEnabled()

§ DL_SPI_enableTransmitParity()

§ DL_SPI_disableTransmitParity()

§ DL_SPI_isTransmitParityEnabled()

§ DL_SPI_setFrameFormat()

§ DL_SPI_getFrameFormat()

§ DL_SPI_setDataSize()

§ DL_SPI_getDataSize()

§ DL_SPI_setMode()

§ DL_SPI_getMode()

§ DL_SPI_setBitOrder()

§ DL_SPI_getBitOrder()

§ DL_SPI_enableLoopbackMode()

§ DL_SPI_disableLoopbackMode()

§ DL_SPI_isLoopbackModeEnabled()

§ DL_SPI_setRepeatTransmit()

§ DL_SPI_getRepeatTransmit()

§ DL_SPI_enablePeripheralAlignDataOnChipSelect()

§ DL_SPI_disablePeripheralAlignDataOnChipSelect()

§ DL_SPI_isPeripheralAlignDataOnChipSelectEnabled()

§ DL_SPI_enablePacking()

§ DL_SPI_disablePacking()

§ DL_SPI_isPackingEnabled()

§ DL_SPI_setChipSelect()

§ DL_SPI_getChipSelect()

§ DL_SPI_setPeripheralReceiveTimeout()

§ DL_SPI_getPeripheralReceiveTimeout()

§ DL_SPI_setControllerCommandDataModeConfig()

§ DL_SPI_getControllerCommandDataModeConfig()

§ DL_SPI_enableControllerCommandDataMode()

§ DL_SPI_disableControllerCommandDataMode()

§ DL_SPI_isControllerCommandDataModeEnabled()

§ DL_SPI_enablePeripheralDataOutput()

§ DL_SPI_disablePeripheralDataOutput()

§ DL_SPI_isPeripheralDataOutputEnabled()

§ DL_SPI_setDelayedSampling()

§ DL_SPI_getDelayedSampling()

§ DL_SPI_setFIFOThreshold()
