CC1352P_2_LAUNCHXL/thread/shade/platform/uart.c File Reference

#include <openthread/config.h>
#include <stddef.h>
#include <utils/code_utils.h>
#include <openthread/platform/uart.h>
#include <ti/drivers/UART.h>
#include <ti/drivers/uart/UARTCC26XX.h>
#include "ti_drivers_config.h"
#include "system.h"

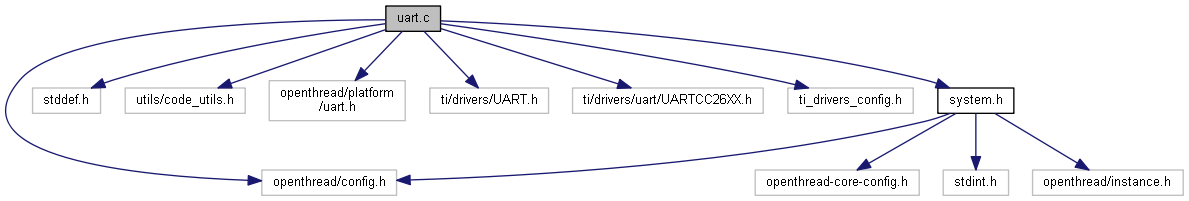

Include dependency graph for CC1352P_2_LAUNCHXL/thread/shade/platform/uart.c:

Macros
#define	PLATFORM_UART_EVENT_RX_DONE   (1U << 1)
#define	PLATFORM_UART_EVENT_TX_DONE   (1U << 0)
#define	PLATFORM_UART_RECV_BUF_LEN   32

Functions
otError	otPlatUartDisable (void)
otError	otPlatUartEnable (void)
otError	otPlatUartFlush (void)
otError	otPlatUartSend (const uint8_t *aBuf, uint16_t aBufLength)
void	platformUartProcess (uintptr_t arg)
static void	uartReadCallback (UART_Handle aHandle, void *aBuf, size_t aLen)
static void	uartWriteCallback (UART_Handle aHandle, void *aBuf, size_t aLen)

Variables
static uint8_t	PlatformUart_receiveBuffer [PLATFORM_UART_RECV_BUF_LEN]
static size_t	PlatformUart_receiveLen
static uint8_t const *	PlatformUart_sendBuffer = NULL
static UART_Handle	PlatformUart_uartHandle

Macro Definition Documentation

PLATFORM_UART_EVENT_TX_DONE

#define PLATFORM_UART_EVENT_TX_DONE   (1U << 0)

Configure the UART core for 115200 baud 8-N-1, no HW flow control.

Note

Make sure that data being passed to otPlatUartSend is in persistent readable memory. Event identifiers passed back to the stack task callback.

Referenced by platformUartProcess(), and uartWriteCallback().

PLATFORM_UART_EVENT_RX_DONE

#define PLATFORM_UART_EVENT_RX_DONE   (1U << 1)

Referenced by platformUartProcess(), and uartReadCallback().

PLATFORM_UART_RECV_BUF_LEN

#define PLATFORM_UART_RECV_BUF_LEN   32

Size of the statically allocated buffer to pass data from the callback to the processing loop.

Function Documentation

uartReadCallback()

static void uartReadCallback ( UART_Handle  aHandle, void *  aBuf, size_t  aLen  )

static

Callback for when the UART driver finishes reading.

This is triggered when the buffer is full, or when the UART hardware times out.

References PLATFORM_UART_EVENT_RX_DONE, PlatformUart_receiveLen, and platformUartSignal().

Referenced by otPlatUartEnable().

uartWriteCallback()

static void uartWriteCallback ( UART_Handle  aHandle, void *  aBuf, size_t  aLen  )

static

Callback for when the UART driver finishes writing a buffer.

References PLATFORM_UART_EVENT_TX_DONE, PlatformUart_sendBuffer, and platformUartSignal().

Referenced by otPlatUartEnable().

otPlatUartEnable()

otError otPlatUartEnable

(

void

)

Function documented in platform/uart.h

References PlatformUart_receiveBuffer, PlatformUart_uartHandle, uartReadCallback(), and uartWriteCallback().

otPlatUartDisable()

otError otPlatUartDisable

(

void

)

Function documented in platform/uart.h

References PlatformUart_uartHandle.

otPlatUartSend()

otError otPlatUartSend	(	const uint8_t *	aBuf,
		uint16_t	aBufLength
	)

Function documented in platform/uart.h

References PlatformUart_sendBuffer, and PlatformUart_uartHandle.

platformUartProcess()

void platformUartProcess

(

uintptr_t

arg

)

Function documented in system.h

References otPlatUartFlush(), otPlatUartReceived(), otPlatUartSendDone(), PLATFORM_UART_EVENT_RX_DONE, PLATFORM_UART_EVENT_TX_DONE, PlatformUart_receiveBuffer, PlatformUart_receiveLen, and PlatformUart_uartHandle.

otPlatUartFlush()

otError otPlatUartFlush

(

void

)

Function documented in system.h

Referenced by platformUartProcess().

Variable Documentation

PlatformUart_receiveBuffer

uint8_t PlatformUart_receiveBuffer[PLATFORM_UART_RECV_BUF_LEN]

static

Statically allocated data buffer.

Referenced by otPlatUartEnable(), and platformUartProcess().

PlatformUart_receiveLen

size_t PlatformUart_receiveLen

static

Number of bytes in the receive buffer.

Referenced by platformUartProcess(), and uartReadCallback().

PlatformUart_sendBuffer

uint8_t const* PlatformUart_sendBuffer = NULL

static

The buffer to be sent.

Referenced by otPlatUartSend(), and uartWriteCallback().

PlatformUart_uartHandle

UART_Handle PlatformUart_uartHandle

static

Uart driver handle.

Referenced by otPlatUartDisable(), otPlatUartEnable(), otPlatUartSend(), and platformUartProcess().
