Detailed Description

PRELIMINARY UART driver interface

WARNING These APIs are PRELIMINARY, and subject to change in the next few months.

The UART2 driver is an updated version of the UART driver. The name UART2 was given due to changes in the API, to support backwards compatibility with applications using the existing UART driver. Key differences between the UART and UART2 drivers:

UART2 has both RX and TX ring buffers for receiving/sending data.
UART2 uses DMA to transfer data between the UART FIFOs and the RX and TX ring buffers (in nonblocking mode). In blocking mode and callback mode, DMA will transfer data straight between the hardware FIFO and the source/destination buffer supplied by the application. NOTE: If the source-buffer for a TX operation resides in flash, the driver will constrain the flash to remain on during idle.
The UART2 APIs for reading and writing data have been made more posix-like.
UART2 provides for event notification, allowing the application to receive TX start and completion events, and RX error events.
Note
These events are synchronous to what can be observed on the data lines. A UART2_EVENT_TX_FINISHED event will for example only occur after all data has been shifted from the hardware FIFO out onto the TX-pin. In contrast, read and write-callbacks are invoked when the driver has finished writing data into the hardware FIFO.
To use the UART2 driver, ensure that the correct driver library for your device is linked in and include this header file as follows:
#include <ti/drivers/UART2.h>

This module serves as the main interface for applications. Its purpose is to implement common code between the device specific implementations of UART2. Any device specific code that differs from the common code is called through functions prefaced with the "UART2_" naming convention. These functions are implemented in each device specific implementation.

Overview

A UART is used to translate data between the chip and a serial port. The UART2 driver simplifies reading and writing to any of the UART peripherals on the board, with multiple modes of operation and performance. These include blocking and nonblocking modes.

The UART2 driver interface provides device independent APIs, data types, and macros. The APIs in this driver serve as an interface to a typical RTOS application. The specific peripheral implementations are responsible for creating all the RTOS specific primitives to allow for thread-safe operation.

Usage

This documentation provides a basic usage summary and a set of examples in the form of commented code fragments. Detailed descriptions of the APIs are provided in subsequent sections.

Synopsis

// Import the UART2 driver definitions
#include <ti/drivers/UART2.h>
// Initialize UART2 parameters
UART2_Params params;
UART2_Params_init(&params);
params.baudRate = 9600;
params.readMode = UART2_Mode_BLOCKING;
params.writeMode = UART2_Mode_BLOCKING;
// Open the UART
UART2_Handle uart;
uart = UART2_open(CONFIG_UART0, &params);
// Enable receiver, inhibit low power mode
UART2_rxEnable(uart);
// Read from the UART.
size_t  bytesRead;
uint8_t buffer[BUFSIZE];
int32_t status;
status = UART2_read(uart, buffer, BUFSIZE, &bytesRead);
// Write to the UART
size_t  bytesWritten;
status = UART2_write(uart, buffer, BUFSIZE, &bytesWritten);
// Close the UART
UART2_close(uart);

Examples

The following code example opens a UART instance, reads a byte from the UART, and then writes the byte back to the UART.

char        input;
UART2_Handle uart;
UART2_Params uartParams;
// Open an instance of the UART2 driver
UART2_Params_init(&uartParams);
uartParams.baudRate = 115200;
uart = UART2_open(CONFIG_UART0, &uartParams);
if (uart == NULL) {
    // UART2_open() failed
    while (1);
}
// Enable receiver, inhibit low power mode
UART2_rxEnable(uart);
// Loop forever echoing
while (1) {
    status = UART2_read(uart, &input, 1, &bytesRead);
    status = UART2_write(uart, &input, 1, &bytesWritten);
}

Details for the example code above are described in the following subsections.

Opening the UART2 Driver

Opening a UART requires four steps:

Create and initialize a UART2_Params structure.
Fill in the desired parameters.
Call UART2_open(), passing the index of the UART in the UART2_config structure, and the address of the UART2_Params structure. The UART2 instance is specified by the index in the UART2_config structure.
Check that the UART2 handle returned by UART2_open() is non-NULL, and save it. The handle will be used to read and write to the UART you just opened.

Only one UART index can be used at a time; calling UART2_open() a second time with the same index previosly passed to UART2_open() will result in an error. You can, though, re-use the index if the instance is closed via UART2_close(). In the previous example code, CONFIG_UART0 is passed to UART2_open(). This macro is defined in the example's ti_drivers_config.h file.

Modes of Operation

The UART driver can operate in blocking, nonblocking, or callback mode, by setting the writeMode and readMode parameters passed to UART2_open(). If these parameters are not set, as in the example code, the UART2 driver defaults to blocking mode. Options for the writeMode and readMode parameters are UART2_Mode_BLOCKING, UART2_Mode_NONBLOCKING, and UART2_Mode_CALLBACK:

UART2_Mode_BLOCKING uses a semaphore to block while data is being sent, or while waiting for some data to be received. The context of calling UART2_read() and UART2_write() in blocking mode must always be a Task. The UART2_write() call will block until all data has been transmitted onto the TX pin. The UART2_read() calls can be configured to have two different behaviors, using the UART2_ReadReturnMode of the UART2_Params. In UART2_ReadReturnMode_FULL (the default), UART2_read() will block until the requested number of bytes has been received. In UART2_ReadReturnMode_PARTIAL, UART2_read() will block until either the requested number of bytes has been received, or a UART hardware read timeout has occurred. Using UART2_ReadReturnMode_PARTIAL is a good choice if the number of incoming data bytes is unknown. In UART2_Mode_BLOCKING, UART2_read() will always return at least some data. UART2_readTimeout() can be used to specify a timeout in system clock ticks, to wait for data. UART2_readTimeout() will return when all data is received, or the specified timeout expires, or, if using the mode UART2_ReadReturnMode_PARTIAL, a hardware read timeout occurs, whichever happens first.
UART2_Mode_NONBLOCKING does not block waiting for data to be sent or received. UART2_write() and UART2_read() will return immediately having transferred as much data as the driver can immediately accept or has available, respectively. If no data can be accepted or received, UART2_write() and UART2_read() return UART2_STATUS_EAGAIN.
UART2_Mode_CALLBACK is nonblocking and UART2_read() and UART2_write() will return while data is being sent in the context of a hardware interrupt. When all data has been read from, or written to the hardware FIFO, the UART2 driver will call the user's callback function, and the driver is ready to accept another read or write operation.
Note
When transmitting, it is therefore not guaranteed that all data has been shifted out to the TX pin when the write-callback is invoked. This is instead signalled by the UART2_EVENT_TX_FINISHED event. In some cases, the UART data transfer may have been cancelled, so the number of bytes sent/received are passed to the callback function. Your implementation of the callback function can use this information as needed. Since the user's callback may be called in the context of a hardware interrupt, the callback function must not make any RTOS blocking calls. The buffer passed to UART2_write() in UART2_Mode_CALLBACK must remain coherent until all the characters have been sent (ie until the tx callback has been called with a byte count equal to that passed to UART2_write()).

Enabling the Receiver

The example code enables the collection of data into the RX ring buffer before the first call to UART2_read():

UART2_rxEnable(uart);

Note that this call is not necessary if the first UART2_read() is called in time to prevent the RX FIFO from overrun, or if flow control is used.

Reading and Writing Data

The example code reads one byte frome the UART instance, and then writes one byte back to the same instance:

status = UART2_read(uart, &input, 1, &bytesRead);

status = UART2_write(uart, &input, 1, &bytesWritten);

The UART2 driver allows full duplex data transfers. Therefore, it is possible to call UART2_read() and UART2_write() at the same time. It is not possible, however, to issue multiple concurrent operations in the same direction. For example, if one thread calls UART2_read(uart0, buffer0...), any other thread attempting UART2_read(uart0, buffer1...) will result in an error of UART2_STATUS_EINUSE, until all the data from the first UART2_read() has been transferred to buffer0. This applies to blocking, callback, and nonblocking modes. So applications must either synchronize UART2_read() (or UART2_write()) calls that use the same UART handle, or check for the UART2_STATUS_EINUSE return code indicating that a transfer is still ongoing.

Configuration

Refer to the Driver's Configuration section for driver configuration information.

#include <stddef.h>
#include <stdint.h>
#include <stdbool.h>
#include <ti/drivers/Power.h>
#include <ti/drivers/dpl/ClockP.h>
#include <ti/drivers/dpl/HwiP.h>
#include <ti/drivers/dpl/SemaphoreP.h>
#include <ti/drivers/utils/RingBuf.h>

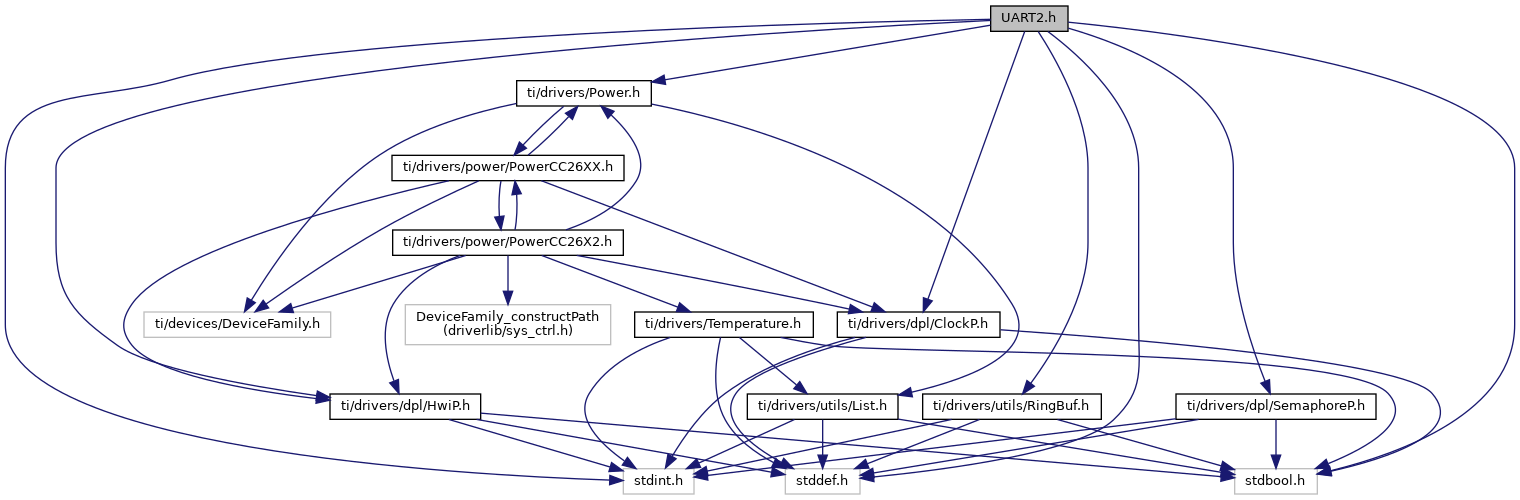

Include dependency graph for UART2.h:

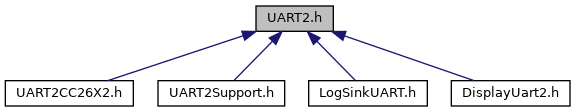

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	UART2_Params
	UART2 Parameters. More...

struct	UART2_Config_
	UART2 Global configuration. More...

Macros
#define	UART2_FLOWCTRL_NONE 0
	No hardware flow control. More...

#define	UART2_FLOWCTRL_HARDWARE 1
	Hardware flow control. More...

#define	UART2_STATUS_SUCCESS (0)
	Successful status code returned by UART2 APIs. More...

#define	UART2_STATUS_SREADTIMEOUT (1)
	A read timeout occurred (not an error). More...

#define	UART2_STATUS_EFRAMING (-1)
	A framing error occurred. More...

#define	UART2_STATUS_EPARITY (-2)
	A parity error occurred. More...

#define	UART2_STATUS_EBREAK (-4)
	A break error occurred. More...

#define	UART2_STATUS_EOVERRUN (-8)
	A FIFO overrun occurred. More...

#define	UART2_STATUS_EINUSE (-9)
	The UART is currently in use. More...

#define	UART2_STATUS_EINVALID (-10)
	An invalid argument or UART2_Params field was passed to UART2 API. More...

#define	UART2_STATUS_EFAIL (-11)
	General failure status returned by UART2 API. More...

#define	UART2_STATUS_EMEMORY (-12)
	A memory allocation failure occurred. More...

#define	UART2_STATUS_ETIMEOUT (-13)
	A timeout occurred for a blocking UART2_read or UART2_write call. More...

#define	UART2_STATUS_ECANCELLED (-14)
	A UART2_write() or UART2_read() operation was cancelled. More...

#define	UART2_STATUS_ENOTOPEN (-15)
	A UART2_write() or UART2_read() called on a device not opened. More...

#define	UART2_STATUS_EAGAIN (-16)
	A UART2_write() or UART2_read() in UART2_Mode_NONBLOCKING would have blocked. More...

#define	UART2_EVENT_OVERRUN (0x08)
	A receive overrun has occurred. More...

#define	UART2_EVENT_BREAK (0x04)
	A break has occurred. More...

#define	UART2_EVENT_PARITY (0x02)
	A parity error has occurred. More...

#define	UART2_EVENT_FRAMING (0x01)
	A framing error has occurred. More...

#define	UART2_EVENT_TX_BEGIN (0x10)
	The UART will start transmitting data. More...

#define	UART2_EVENT_TX_FINISHED (0x20)
	The UART stopped transmitting data. More...

#define	UART2_WAIT_FOREVER (~(0U))
	Wait forever define. More...

Typedefs
typedef struct UART2_Config_ *	UART2_Handle
	A handle that is returned from a UART2_open() call. More...

typedef void(*	UART2_Callback) (UART2_Handle handle, void buf, size_t count, void userArg, int_fast16_t status)
	The definition of a callback function used by the UART2 driver when used in UART2_Mode_CALLBACK The callback can occur in task or interrupt context. More...

typedef void(*	UART2_EventCallback) (UART2_Handle handle, uint32_t event, uint32_t data, void *userArg)
	The definition of a callback function used by the UART driver. The callback can occur in task or interrupt context. More...

typedef struct UART2_Config_	UART2_Config
	UART2 Global configuration. More...

Enumerations
enum	UART2_Mode { UART2_Mode_BLOCKING, UART2_Mode_CALLBACK, UART2_Mode_NONBLOCKING }
	UART2 mode settings. More...

enum	UART2_ReadReturnMode { UART2_ReadReturnMode_FULL, UART2_ReadReturnMode_PARTIAL }
	UART2 return mode settings. More...

enum	UART2_DataLen { UART2_DataLen_5 = 0, UART2_DataLen_6 = 1, UART2_DataLen_7 = 2, UART2_DataLen_8 = 3 }
	UART2 data length settings. More...

enum	UART2_StopBits { UART2_StopBits_1 = 0, UART2_StopBits_2 = 1 }
	UART2 stop bit settings. More...

enum	UART2_Parity { UART2_Parity_NONE = 0, UART2_Parity_EVEN = 1, UART2_Parity_ODD = 2, UART2_Parity_ZERO = 3, UART2_Parity_ONE = 4 }
	UART2 parity type settings. More...

Functions
void	UART2_close (UART2_Handle handle)
	Function to close a UART peripheral specified by the UART2 handle. More...

void	UART2_flushRx (UART2_Handle handle)
	Function to flush data in the UART RX FIFO. More...

size_t	UART2_getRxCount (UART2_Handle handle)
	Get the number of bytes available in the circular buffer. More...

UART2_Handle	UART2_open (uint_least8_t index, UART2_Params *params)
	Function to initialize a given UART peripheral. More...

void	UART2_Params_init (UART2_Params *params)
	Function to initialize the UART2_Params struct to its defaults. More...

int_fast16_t	UART2_read (UART2_Handle handle, void buffer, size_t size, size_t bytesRead)
	Function that reads data from a UART. More...

int_fast16_t	UART2_readTimeout (UART2_Handle handle, void buffer, size_t size, size_t bytesRead, uint32_t timeout)
	Function that reads data from a UART, with a specified timeout for blocking mode. More...

void	UART2_readCancel (UART2_Handle handle)
	Function that cancels a UART2_read() function call. More...

int_fast16_t	UART2_write (UART2_Handle handle, const void buffer, size_t size, size_t bytesWritten)
	Function that writes data to a UART. More...

void	UART2_rxDisable (UART2_Handle handle)
	Function that disables collecting of RX data into the circular buffer. More...

void	UART2_rxEnable (UART2_Handle handle)
	Function that enables collecting of RX data into the circular buffer. More...

int_fast16_t	UART2_writeTimeout (UART2_Handle handle, const void buffer, size_t size, size_t bytesWritten, uint32_t timeout)
	Function that writes data to a UART, with a specified timeout. More...

void	UART2_writeCancel (UART2_Handle handle)
	Function that cancels a UART2_write() function call. More...

Variables
const UART2_Config	UART2_config []

const uint_least8_t	UART2_count

Macro Definition Documentation

§ UART2_FLOWCTRL_NONE

#define UART2_FLOWCTRL_NONE 0

No hardware flow control.

§ UART2_FLOWCTRL_HARDWARE

#define UART2_FLOWCTRL_HARDWARE 1

Hardware flow control.

§ UART2_WAIT_FOREVER

#define UART2_WAIT_FOREVER (~(0U))

Wait forever define.

Typedef Documentation

§ UART2_Handle

typedef struct UART2_Config_* UART2_Handle

A handle that is returned from a UART2_open() call.

§ UART2_Callback

typedef void(* UART2_Callback) (UART2_Handle handle, void *buf, size_t count, void *userArg, int_fast16_t status)

The definition of a callback function used by the UART2 driver when used in UART2_Mode_CALLBACK The callback can occur in task or interrupt context.

Parameters

[in]	UART2_Handle	UART2_Handle
[in]	buf	Pointer to read/write buffer
[in]	count	Number of elements read/written
[in]	userArg	A user supplied argument specified in UART2_Params.
[in]	status	A UART2_STATUS code indicating success or failure of the transfer.

§ UART2_EventCallback

typedef void(* UART2_EventCallback) (UART2_Handle handle, uint32_t event, uint32_t data, void *userArg)

The definition of a callback function used by the UART driver. The callback can occur in task or interrupt context.

Parameters

[in]	UART2_Handle	UART2_Handle
[in]	event	UART2_EVENT that has occurred.
[in]	data	- UART2_EVENT_OVERRUN: accumulated count UART2_EVENT_BREAK: unused UART2_EVENT_PARITY: unused UART2_EVENT_FRAMING: unused UART2_EVENT_TX_BEGIN: unused UART2_EVENT_TX_FINISHED: unused
[in]	userArg	A user supplied argument specified in UART2_Params.
[in]	status	A UART2_STATUS code indicating success or failure of the transfer.

§ UART2_Config

typedef struct UART2_Config_ UART2_Config

UART2 Global configuration.

The UART2_Config structure contains a set of pointers used to characterize the UART2 driver implementation.

Enumeration Type Documentation

§ UART2_Mode

enum UART2_Mode

UART2 mode settings.

This enum defines the read and write modes for the configured UART.

Enumerator
UART2_Mode_BLOCKING	UART2_write() will block the calling task until all of the data has been transmitted onto the TX pin. UART2_read() will block until some data becomes available.
UART2_Mode_CALLBACK	Nonblocking, UART2_write() or UART2_read() will return immediately. When all data has been either written to, or read from the hardware FIFO, the callback function is called from either the caller's context or from an interrupt context, and the driver is ready to accept a new call to UART2_write() or UART2_read(). It is not guaranteed that all data has been fully transmitted yet when the write-callback is invoked. To be notified of this, the application must subscribe to the UART2_EVENT_TX_FINISHED event.
UART2_Mode_NONBLOCKING	Nonblocking, UART2_write() or UART2_read() will return immediately. UART2_write() will copy as much data into the transmit buffer as space allows. UART2_read() will copy as much data from the receive buffer as is immediately available.

§ UART2_ReadReturnMode

enum UART2_ReadReturnMode

UART2 return mode settings.

This enumeration defines the return modes for UART2_read().

UART2_ReadReturnMode_FULL unblocks or performs a callback when the read buffer has been filled with the number of bytes passed to UART2_read(). UART2_ReadReturnMode_PARTIAL unblocks or performs a callback whenever a read timeout error occurs on the UART peripheral. This timeout error is not the same as the blocking read timeout in the UART2_Params; the read timeout occurs if the read FIFO is non-empty and no new data has been received for a device/baudrate dependent number of clock cycles. This mode can be used when the exact number of bytes to be read is not known.

Enumerator
UART2_ReadReturnMode_FULL	Unblock/callback when buffer is full.
UART2_ReadReturnMode_PARTIAL	Unblock/callback when no new data comes in.

§ UART2_DataLen

enum UART2_DataLen

UART2 data length settings.

This enumeration defines the UART data lengths.

Enumerator
UART2_DataLen_5	Data length is 5 bits
UART2_DataLen_6	Data length is 6 bits
UART2_DataLen_7	Data length is 7 bits
UART2_DataLen_8	Data length is 8 bits

§ UART2_StopBits

enum UART2_StopBits

UART2 stop bit settings.

This enumeration defines the UART2 stop bits.

Enumerator
UART2_StopBits_1	One stop bit
UART2_StopBits_2	Two stop bits

§ UART2_Parity

enum UART2_Parity

UART2 parity type settings.

This enumeration defines the UART2 parity types.

Enumerator
UART2_Parity_NONE	No parity
UART2_Parity_EVEN	Parity bit is even
UART2_Parity_ODD	Parity bit is odd
UART2_Parity_ZERO	Parity bit is always zero
UART2_Parity_ONE	Parity bit is always one

Function Documentation

§ UART2_close()

void UART2_close ( UART2_Handle handle )

Function to close a UART peripheral specified by the UART2 handle.

Precondition: UART2_open() has been called.; There are no ongoing read or write calls. Any ongoing read or write calls can be cancelled with UART2_readCancel() or UART2_writeCancel().

Parameters

[in] handle A UART2_Handle returned from UART2_open()

See also: UART2_open()

§ UART2_flushRx()

void UART2_flushRx ( UART2_Handle handle )

Function to flush data in the UART RX FIFO.

Precondition: UART2_open() has been called.

This function can be called to remove all data from the RX FIFO, for example, after a UART read error has occurred. All data in the RX circular buffer will be discarded.

Parameters

[in] handle A UART2_Handle returned from UART2_open()

§ UART2_getRxCount()

size_t UART2_getRxCount ( UART2_Handle handle )

Get the number of bytes available in the circular buffer.

Precondition: UART2_open() has been called.

Parameters

[in] handle A UART2_Handle returned from UART2_open()

Returns: Returns the number of bytes available in the RX circular buffer.

See also: UART2_rxEnable()

§ UART2_open()

UART2_Handle UART2_open	(	uint_least8_t	index,
		UART2_Params *	params
	)

Function to initialize a given UART peripheral.

Function to initialize a given UART peripheral specified by the particular index value.

Parameters

[in]	index	Logical peripheral number for the UART indexed into the UART2_config table
[in]	params	Pointer to a parameter block. If NULL, default parameter values will be used. All the fields in this structure are read-only.

See also: UART2_close()

§ UART2_Params_init()

void UART2_Params_init ( UART2_Params * params )

Function to initialize the UART2_Params struct to its defaults.

Parameters

[in] params A pointer to UART2_Params structure for initialization

Defaults values are: readMode = UART2_Mode_BLOCKING; writeMode = UART2_Mode_BLOCKING; eventCallback = NULL; eventMask = 0; readCallback = NULL; writeCallback = NULL; readReturnMode = UART2_ReadReturnMode_PARTIAL; baudRate = 115200; dataLength = UART2_DataLen_8; stopBits = UART2_StopBits_1; parityType = UART2_Parity_NONE; userArg = NULL;

§ UART2_read()

int_fast16_t UART2_read	(	UART2_Handle	handle,
		void *	buffer,
		size_t	size,
		size_t *	bytesRead
	)

Function that reads data from a UART.

UART2_read() reads data from a UART controller. The destination is specified by buffer and the number of bytes to read is given by size.

In UART2_Mode_BLOCKING, UART2_read() blocks task execution until all the data in buffer has been read, if the read return mode is UART2_ReadReturnMode_FULL. If the read return mode is UART2_ReadReturnMode_PARTIAL, UART2_read() returns before all the data has been read, if some data has been received, but reception has been inactive sufficiently long for a hardware read timeout to occur (e.g., for a 32-bit period). If a receive error occurs (e.g., framing, FIFO overrun), UART2_read() will return with the number of bytes read up to the occurance of the error.

In UART2_Mode_CALLBACK, UART2_read() does not block task execution. Instead, a callback function specified by UART2_Params::readCallback is called when the transfer is finished (UART2_ReadReturnMode_FULL), or reception has become inactive (UART2_ReadReturnMode_PARTIAL). The callback function can occur in the caller's context or in HWI context, depending on the device-specific implementation. An unfinished asynchronous read operation must always be cancelled using UART2_readCancel() before calling UART2_close().

In UART2_Mode_NONBLOCKING, UART2_read() will return the minimum of size bytes and the number of bytes in the RX circular buffer. In this mode, the application should check the number of bytes returned in the bytesRead parameter. A status of success will be returned, even if not all bytes requested were read, unless no data is available or an error occured. If no data is available, a status of UART2_STATUS_EAGAIN is returned.

Note: It is ok to call UART2_read() from its own callback function when in UART2_Mode_CALLBACK.

Warning: By calling this function, RX will be enabled even after the function has returned. This is in order to keep collecting data into the RX buffer to prevent losing data at high baud-rates. As a consequence, entering low power mode will be inhibited. To disable RX and enable entering low power mode, UART2_rxDisable must be called.

Parameters

[in]	handle	A UART2_Handle returned by UART2_open()
[in]	buffer	A pointer to an empty buffer to which received data should be read
[in]	size	The number of bytes to be read into buffer
[out]	bytesRead	If non-NULL, the location to store the number of bytes actually read into the buffer. If NULL, this parameter will be ignored. In callback mode, NULL could be passed in for this parameter, since the callback function will be passed the number of bytes read. In blocking mode, NULL can be passed, however, status should be checked in case the number of bytes requested was not received due to errors. In nonblocking mode, it is not recommended to pass NULL for this parameter, as it would be impossible to determine the number of bytes actually read.

Returns: Returns a status indicating success or failure of the read.

Return values

UART2_STATUS_SUCCESS	The call was successful.
UART2_STATUS_EINUSE	Another read from the UART is currently ongoing.
UART2_STATUS_EAGAIN	In UART2_Mode_NONBLOCKING, no data is currently available.
UART2_STATUS_ECANCELLED	In UART2_Mode_BLOCKING, the read was canceled by a call to UART2_readCancel() before any data could be received.

§ UART2_readTimeout()

int_fast16_t UART2_readTimeout	(	UART2_Handle	handle,
		void *	buffer,
		size_t	size,
		size_t *	bytesRead,
		uint32_t	timeout
	)

Function that reads data from a UART, with a specified timeout for blocking mode.

UART2_readTimeout() reads data from a UART controller. The destination is specified by buffer and the number of bytes to read is given by size.

In UART2_Mode_BLOCKING with UART2_ReadReturnMode_FULL, UART2_readTimeout() blocks task execution until all the data in buffer has been read, or the specified timeout has elapsed. In UART2_Mode_BLOCKING with UART2_ReadReturnMode_PARTIAL, UART2_readTimeout() returns before all the data has been read, if some data has been received, but reception has been inactive sufficiently long for a hardware read timeout to occur (e.g., for a 32-bit period). UART2_readTimeout() will also return if the specified timeout parameter has elapsed. Note that the timeout parameter is different from the hardware read timeout.

In UART2_Mode_CALLBACK, UART2_readTimeout() does not block task execution. Instead, a callback function specified by UART2_Params::readCallback is called when the transfer is finished (UART2_ReadReturnMode_FULL), or reception has become inactive (UART2_ReadReturnMode_PARTIAL). The callback function can occur in the caller's context or in HWI context, depending on the device-specific implementation. An unfinished asynchronous read operation must always be cancelled using UART2_readCancel() before calling UART2_close(). In UART2_Mode_CALLBACK, the timeout parameter passed to UART2_readTimeout(), is ignored.

In UART2_Mode_NONBLOCKING, UART2_readTimeout() will return the minimum of size and the number of data in the RX circular buffer. In this mode, the application should check the number of bytes read in the bytesRead parameter. A status of success will be returned if one or more bytes is available, unless an error occured. In UART2_Mode_NONBLOCKING, the timeout parameter passed to UART2_readTimeout(), is ignored.

Note: It is ok to call UART2_readTimeout() from its own callback function when in UART2_Mode_CALLBACK.

Warning: By calling this function, RX will be enabled even after the function has returned. This is in order to keep collecting data into the RX buffer to prevent losing data at high baud-rates. As a consequence, entering low power mode will be inhibited. To disable RX and enable entering low power mode, UART2_rxDisable must be called.

Parameters

[in]	handle	A UART2_Handle returned by UART2_open()
[in]	buffer	A pointer to an empty buffer to which received data should be read
[in]	size	The number of bytes to be read into buffer
[out]	bytesRead	If non-NULL, the location to store the number of bytes actually read into the buffer. If NULL, this parameter will be ignored. In callback mode, NULL could be passed in for this parameter, since the callback function will be passed the number of bytes read. Similarly, in blocking mode with infinite timeout, NULL can be passed. However, status should be checked in case the number of bytes requested was not received due to errors. In nonblocking mode, it is not recommended to pass NULL for this parameter, as it would be impossible to determine the number of bytes actually read.
[in]	timeout	The number of system clock ticks to wait until all data is received. If not all requested data was received within the timeout period, an error of UART2_STATUS_ETIMEOUT will be returned. This parameter is only applicable to UART2_Mode_BLOCKING.

Returns: Returns a status indicating success or failure of the read.

Return values

UART2_STATUS_SUCCESS	The call was successful.
UART2_STATUS_EINUSE	Another read from the UART is currently ongoing.
UART2_STATUS_EAGAIN	In UART2_Mode_NONBLOCKING, no data is currently available.
UART2_STATUS_ECANCELLED	In UART2_Mode_BLOCKING, the read was canceled by a call to UART2_readCancel() before any data could be received.
UART2_STATUS_ETIMEOUT	The read operation timed out.

§ UART2_readCancel()

void UART2_readCancel ( UART2_Handle handle )

Function that cancels a UART2_read() function call.

This function cancels an asynchronous UART2_read() operation in in UART2_Mode_CALLBACK, or unblocks a UART2_read() call in UART2_Mode_BLOCKING. In UART2_Mode_CALLBACK, UART2_readCancel() calls the registered read callback function with the number of bytes received so far. It is the application's responsibility to check the count argument in the callback function and handle the case where only a subset of the bytes were received. The callback function will be passed a status of UART2_STATUS_ECANCELLED.

In UART2_Mode_BLOCKING, UART2_read() will return UART2_STATUS_ECANCELLED, and the bytesRead parameter will be set to the number of bytes received so far.

This API has no affect in UART2_Mode_NONBLOCKING.

Parameters

[in] handle A UART2_Handle returned by UART2_open()

§ UART2_write()

int_fast16_t UART2_write	(	UART2_Handle	handle,
		const void *	buffer,
		size_t	size,
		size_t *	bytesWritten
	)

Function that writes data to a UART.

UART2_write() writes data from a memory buffer to the UART interface. The source is specified by buffer and the number of bytes to write is given by size.

In UART2_Mode_BLOCKING, UART2_write() blocks task execution until all the data in buffer has been transmitted onto the TX pin.

In UART2_Mode_CALLBACK, UART2_write() does not block task execution. Instead, a callback function specified by UART2_Params::writeCallback is called when all data has been written to the hardware FIFO. This means that that driver is ready to accept another call to UART2_write().

Note: In contrast to UART2_Mode_BLOCKING, it is not guaranteed that all data has been transmitted onto the TX pin when callback is invoked. This is instead signalled by the event UART2_EVENT_TX_FINISHED.

The buffer passed to UART2_write() in UART2_Mode_CALLBACK is not copied. The buffer must remain coherent until all the characters have been sent (ie until the write callback has been called with a byte count equal to that passed to UART2_write()). The callback function can occur in the caller's task context or in interrupt context, depending on the device implementation. An unfinished asynchronous write operation must always be cancelled using UART2_writeCancel() before calling UART2_close().

In UART2_Mode_NONBLOCKING, UART2_write() will send out as many of the bytes in the buffer as possible, until the TX circular buffer is full. In nonblocking mode, UART2_write() can be called from any context. The bytesWritten parameter should not be NULL so the application can determine the number of bytes actually written.

Parameters

[in]	handle	A UART2_Handle returned by UART2_open()
[in]	buffer	A read-only pointer to buffer containing data to be written to the UART
[in]	size	The number of bytes in the buffer that should be written to the UART
[out]	bytesWritten	If non-NULL, the location to store the number of bytes actually written to the UART in UART2_Mode_BLOCKING and UART2_Mode_NONBLOCKING. In UART2_Mode_CALLBACK, bytesWritten will be set to 0. If bytesWritten is NULL, this parameter will be ignored. In nonblocking mode, it is not recommended to pass NULL for bytesWritten, as the application would have no way to determine the number of bytes actually written. In nonblocking mode, a status of success will be returned even if not all the requested bytes could be written.

Returns: Returns a status indicating success or failure of the write.

Return values

UART2_STATUS_SUCCESS	The call was successful.
UART2_STATUS_EINUSE	Another write to the UART is currently ongoing.

§ UART2_rxDisable()

void UART2_rxDisable ( UART2_Handle handle )

Function that disables collecting of RX data into the circular buffer.

The driver implementation uses a circular buffer to collect RX data while a UART2_read() is not in progress. This function will disable buffering of RX data into the circular buffer. UART2_read() will read directly from the UART driver's RX buffer. Disabling the circular buffer will also allow the device to go into low power modes.

Parameters

[in] handle A UART2_Handle returned by UART2_open()

See also: UART2_rxEnable()

§ UART2_rxEnable()

void UART2_rxEnable ( UART2_Handle handle )

Function that enables collecting of RX data into the circular buffer.

The driver implementation uses a circular buffer to collect RX data while a UART2_read() is not in progress. This function will enable buffering of RX data into the circular buffer. UART2_read() will read directly from the UART drivers RX buffer. Enabling the circular buffer will also prevent the device from going into low power modes.

Parameters

[in] handle A UART2_Handle returned by UART2_open()

See also: UART2_rxDisable()

§ UART2_writeTimeout()

int_fast16_t UART2_writeTimeout	(	UART2_Handle	handle,
		const void *	buffer,
		size_t	size,
		size_t *	bytesWritten,
		uint32_t	timeout
	)

Function that writes data to a UART, with a specified timeout.

UART2_writeTimeout() writes data from a memory buffer to the UART interface. The source is specified by buffer and the number of bytes to write is given by size. A timeout in system clock ticks specifies the maximum time to wait until all data is written (UART2_Mode_BLOCKING only).

In UART2_Mode_BLOCKING, UART2_writeTimeout() blocks task execution until all the data in buffer has been transmitted, or the timeout expires.

In UART2_Mode_CALLBACK, UART2_writeTimeout() does not block task execution. Instead, a callback function specified by UART2_Params::writeCallback is called when all data has been written to the hardware FIFO. This means that that driver is ready to accept another call to UART2_writeTimeout().

Note: In contrast to UART2_Mode_BLOCKING, it is not guaranteed that all data has been transmitted onto the TX pin when callback is invoked. This is instead signalled by the event UART2_EVENT_TX_FINISHED.

The buffer passed to UART2_writeTimeout() in UART2_Mode_CALLBACK is not copied. The buffer must remain coherent until all the characters have been sent (ie until the write callback has been called with a byte count equal to that passed to UART2_writeTimeout()). The callback function can occur in the caller's task context or in interrupt context, depending on the device implementation. An unfinished asynchronous write operation must always be cancelled using UART2_writeCancel() before calling UART2_close().

In UART2_Mode_NONBLOCKING, UART2_writeTimeout() will send out as many of the bytes in the buffer as possible, until the TX FIFO is full. In nonblocking mode, UART2_writeTimeout() is nonblocking and can be called from any context. The bytesWritten parameter should not be NULL so the application can determine the number of bytes actually written.

Parameters

[in]	handle	A UART2_Handle returned by UART2_open()
[in]	buffer	A read-only pointer to buffer containing data to be written to the UART
[in]	size	The number of bytes in the buffer that should be written to the UART
[out]	bytesWritten	If non-NULL, the location to store the number of bytes actually written to the UART in UART2_Mode_BLOCKING and UART2_Mode_NONBLOCKING. In UART2_Mode_CALLBACK, bytesWritten will be set to 0. If bytesWritten is NULL, this parameter will be ignored. In nonblocking mode, it is not recommended to pass NULL for bytesWritten, as the application would have no way to determine the number of bytes actually written. In nonblocking mode, a status of success will be returned even if not all the requested bytes could be written.
[in]	timeout	The number of system clock ticks to wait for the write to complete (UART2_Mode_BLOCKING only). If the timeout expires before all bytes are written, a status of UART2_STATUS_ETIMEOUT will be returned.

Returns: Returns a status indicating success or failure of the write.

Return values

UART2_STATUS_SUCCESS	The call was successful.
UART2_STATUS_EINUSE	Another write to the UART is currently ongoing.
UART2_STATUS_ETIMEOUT	The write operation timed out.

§ UART2_writeCancel()

void UART2_writeCancel ( UART2_Handle handle )

Function that cancels a UART2_write() function call.

This function cancels an asynchronous UART2_write() operation when write mode is UART2_Mode_CALLBACK, or an ongoing UART2_write() in UART2_Mode_NONBLOCKING. In callback mode, UART2_writeCancel() calls the registered write callback function no matter how many bytes were sent. It is the application's responsibility to check the count argument in the callback function and handle cases where only a subset of the bytes were sent. The callback function will be passed a status of UART2_STATUS_ECANCELLED. In blocking mode, UART2_write() will return UART2_STATUS_ECANCELLED.

Note: The above applies to UART2_writeTimeout() as well.

This API has no affect in nonblocking mode.

Parameters

[in] handle A UART2_Handle returned by UART2_open()

Variable Documentation

§ UART2_config

const UART2_Config UART2_config[]

§ UART2_count

const uint_least8_t UART2_count

Detailed Description

Overview

Usage

Synopsis

Examples

Opening the UART2 Driver

Modes of Operation

Enabling the Receiver

Reading and Writing Data

Configuration

Data Structures

Macros

Typedefs

Enumerations

Functions

Variables

Macro Definition Documentation

§ UART2_FLOWCTRL_NONE

§ UART2_FLOWCTRL_HARDWARE

§ UART2_WAIT_FOREVER

Typedef Documentation

§ UART2_Handle

§ UART2_Callback

§ UART2_EventCallback

§ UART2_Config

Enumeration Type Documentation

§ UART2_Mode

§ UART2_ReadReturnMode

§ UART2_DataLen

§ UART2_StopBits

§ UART2_Parity

Function Documentation

§ UART2_close()

§ UART2_flushRx()

§ UART2_getRxCount()

§ UART2_open()

§ UART2_Params_init()

§ UART2_read()

§ UART2_readTimeout()

§ UART2_readCancel()

§ UART2_write()

§ UART2_rxDisable()

§ UART2_rxEnable()

§ UART2_writeTimeout()

§ UART2_writeCancel()

Variable Documentation

§ UART2_config

§ UART2_count
