_apimac_mcpsdataind Struct Reference

#include <api_mac.h>

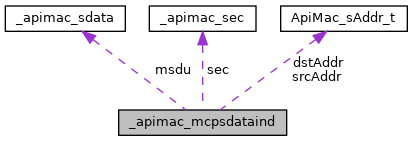

Collaboration diagram for _apimac_mcpsdataind:

Data Fields
ApiMac_sAddr_t	srcAddr
ApiMac_sAddr_t	dstAddr
uint32_t	timestamp
uint16_t	timestamp2
uint16_t	srcPanId
uint16_t	dstPanId
uint8_t	mpduLinkQuality
uint8_t	correlation
int8_t	rssi
uint8_t	dsn
uint16_t	payloadIeLen
uint8_t *	pPayloadIE
ApiMac_fhFrameType_t	fhFrameType
ApiMac_fhDispatchType_t	fhProtoDispatch
uint32_t	frameCntr
ApiMac_sec_t	sec
ApiMac_sData_t	msdu

Detailed Description

MCPS data indication type

Field Documentation

srcAddr

ApiMac_sAddr_t _apimac_mcpsdataind::srcAddr

The address of the sending device

dstAddr

ApiMac_sAddr_t _apimac_mcpsdataind::dstAddr

The address of the destination device

timestamp

uint32_t _apimac_mcpsdataind::timestamp

The time, in backoffs, at which the data were received

timestamp2

uint16_t _apimac_mcpsdataind::timestamp2

The time, in internal MAC timer units, at which the data were received

srcPanId

uint16_t _apimac_mcpsdataind::srcPanId

The PAN ID of the sending device

dstPanId

uint16_t _apimac_mcpsdataind::dstPanId

The PAN ID of the destination device

mpduLinkQuality

uint8_t _apimac_mcpsdataind::mpduLinkQuality

The link quality of the received data frame

correlation

uint8_t _apimac_mcpsdataind::correlation

The raw correlation value of the received data frame

rssi

int8_t _apimac_mcpsdataind::rssi

The received RF power in units dBm

dsn

uint8_t _apimac_mcpsdataind::dsn

The data sequence number of the received frame

payloadIeLen

uint16_t _apimac_mcpsdataind::payloadIeLen

length of the payload IE buffer (pPayloadIE)

pPayloadIE

uint8_t* _apimac_mcpsdataind::pPayloadIE

Pointer to the start of payload IEs

fhFrameType

ApiMac_fhFrameType_t _apimac_mcpsdataind::fhFrameType

Frequency Hopping Frame Type

fhProtoDispatch

ApiMac_fhDispatchType_t _apimac_mcpsdataind::fhProtoDispatch

Frequency hopping protocol dispatch - RESERVED for future use.

frameCntr

uint32_t _apimac_mcpsdataind::frameCntr

Frame counter value of the received data frame (if used)

sec

ApiMac_sec_t _apimac_mcpsdataind::sec

Security Parameters

msdu

ApiMac_sData_t _apimac_mcpsdataind::msdu

Data Buffer

---

The documentation for this struct was generated from the following file:

• api_mac.h
