AESGCMLPF3HSM_Object Struct Reference

AESGCMLPF3HSM Object. More...

#include <AESGCMLPF3HSM.h>

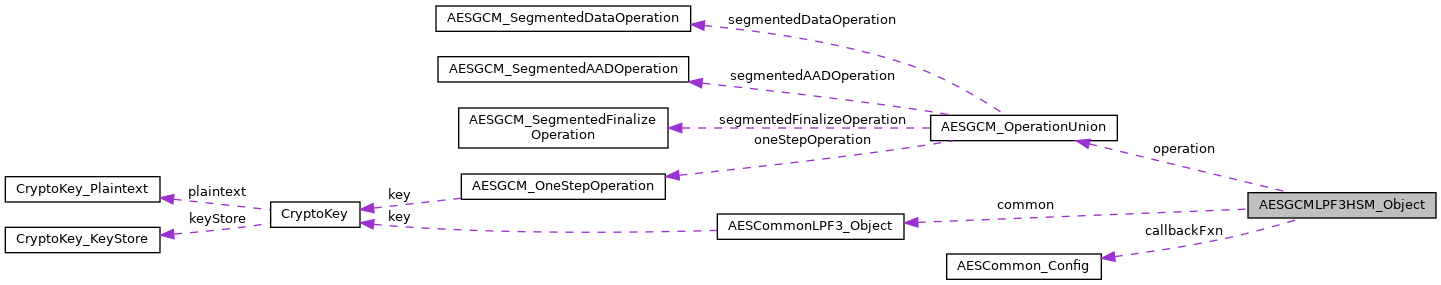

Collaboration diagram for AESGCMLPF3HSM_Object:

Data Fields
AESCommonLPF3_Object	common
const uint8_t *	aad
const uint8_t *	input
uint8_t *	output
const uint8_t *	iv
uint8_t *	mac
uint32_t	counter [AES_BLOCK_SIZE_WORDS]
volatile uint32_t	intermediateTag [AES_BLOCK_SIZE_WORDS]
uint32_t	hashKey [AES_BLOCK_SIZE_WORDS]
uint32_t	tagOTP [AES_BLOCK_SIZE_WORDS]
AESGCM_CallbackFxn	callbackFxn
AESGCM_OperationUnion *	operation
size_t	inputLength
size_t	aadLength
uint8_t	bufferedAADLength
size_t	totalAADLength
size_t	totalDataLength
volatile size_t	totalDataLengthRemaining
volatile size_t	totalAADLengthRemaining
AESGCM_OperationType	operationType
uint8_t	macLength
uint8_t	ivLength
uint8_t	KeyStore_keyingMaterial [AESCommonLPF3_256_KEY_LENGTH_BYTES]
uint8_t	inputFinalBlock [AES_BLOCK_SIZE]
uint8_t	aadFinalBlock [AES_BLOCK_SIZE]
uint8_t	outputFinalBlock [AES_BLOCK_SIZE]
int_fast16_t	hsmStatus
	The status of the HSM Boot up process if HSMLPF3_STATUS_SUCCESS, the HSM booted properly. if HSMLPF3_STATUS_ERROR, the HSM did not boot properly. More...
uint32_t	keyAssetID
uint32_t	tempAssetID
KeyStore_PSA_KeyLocation	keyLocation
bool	segmentedOperationInProgress

Detailed Description

AESGCMLPF3HSM Object.

The application must not access any member variables of this structure!

Field Documentation

common

AESCommonLPF3_Object AESGCMLPF3HSM_Object::common

aad

const uint8_t* AESGCMLPF3HSM_Object::aad

input

const uint8_t* AESGCMLPF3HSM_Object::input

output

uint8_t* AESGCMLPF3HSM_Object::output

iv

const uint8_t* AESGCMLPF3HSM_Object::iv

mac

uint8_t* AESGCMLPF3HSM_Object::mac

counter

uint32_t AESGCMLPF3HSM_Object::counter[AES_BLOCK_SIZE_WORDS]

intermediateTag

volatile uint32_t AESGCMLPF3HSM_Object::intermediateTag[AES_BLOCK_SIZE_WORDS]

hashKey

uint32_t AESGCMLPF3HSM_Object::hashKey[AES_BLOCK_SIZE_WORDS]

tagOTP

uint32_t AESGCMLPF3HSM_Object::tagOTP[AES_BLOCK_SIZE_WORDS]

callbackFxn

AESGCM_CallbackFxn AESGCMLPF3HSM_Object::callbackFxn

operation

AESGCM_OperationUnion* AESGCMLPF3HSM_Object::operation

inputLength

size_t AESGCMLPF3HSM_Object::inputLength

aadLength

size_t AESGCMLPF3HSM_Object::aadLength

bufferedAADLength

uint8_t AESGCMLPF3HSM_Object::bufferedAADLength

totalAADLength

size_t AESGCMLPF3HSM_Object::totalAADLength

totalDataLength

size_t AESGCMLPF3HSM_Object::totalDataLength

totalDataLengthRemaining

volatile size_t AESGCMLPF3HSM_Object::totalDataLengthRemaining

totalAADLengthRemaining

volatile size_t AESGCMLPF3HSM_Object::totalAADLengthRemaining

operationType

AESGCM_OperationType AESGCMLPF3HSM_Object::operationType

macLength

uint8_t AESGCMLPF3HSM_Object::macLength

ivLength

uint8_t AESGCMLPF3HSM_Object::ivLength

KeyStore_keyingMaterial

uint8_t AESGCMLPF3HSM_Object::KeyStore_keyingMaterial[AESCommonLPF3_256_KEY_LENGTH_BYTES]

inputFinalBlock

uint8_t AESGCMLPF3HSM_Object::inputFinalBlock[AES_BLOCK_SIZE]

aadFinalBlock

uint8_t AESGCMLPF3HSM_Object::aadFinalBlock[AES_BLOCK_SIZE]

outputFinalBlock

uint8_t AESGCMLPF3HSM_Object::outputFinalBlock[AES_BLOCK_SIZE]

hsmStatus

int_fast16_t AESGCMLPF3HSM_Object::hsmStatus

The status of the HSM Boot up process if HSMLPF3_STATUS_SUCCESS, the HSM booted properly. if HSMLPF3_STATUS_ERROR, the HSM did not boot properly.

keyAssetID

uint32_t AESGCMLPF3HSM_Object::keyAssetID

tempAssetID

uint32_t AESGCMLPF3HSM_Object::tempAssetID

keyLocation

KeyStore_PSA_KeyLocation AESGCMLPF3HSM_Object::keyLocation

segmentedOperationInProgress

bool AESGCMLPF3HSM_Object::segmentedOperationInProgress

---

The documentation for this struct was generated from the following file:

• AESGCMLPF3HSM.h
